£72.24
excl. VAT
£86.69 incl. VAT
£86.69
incl. VAT
£72.24 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 13200 N |
|---|---|
| Basic radial load static | 12400 N |

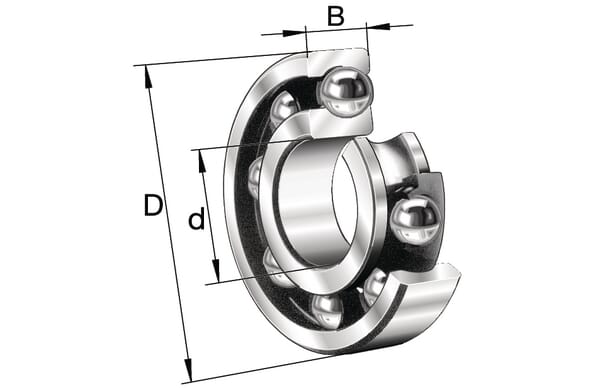

| Bearing model type | Deep groove ball bearings |
| Bore type | Cylindrical |
| BWidth | 10 mm |
| dInside diameter | 70 mm |
| DOutside diameter | 90 mm |
| Inside diameter of outer ring | 83.4 mm |
| Limiting speed | 88.3 r/s |
| Manufacturer | Schaeffler |
| Max rotation speed | 13800 r/min |
| Max working temperature | 120 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 61814-Y |
| Radial internal clearance code | CN |
| Ref rotation speed | 5300 r/min |
| Sealing | Open |
| Unit | Each |
Logistics
| EAN | 4047643333108 |
|---|---|
| Unit of measure | EA |
| Weight | 151 g |
| Dimensions | 95 × 95 × 15 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000072621
FAG Spherical roller bearing 95x170x43mm INA/FAG 22219E1XL
£240.77 excl.
£288.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000325105

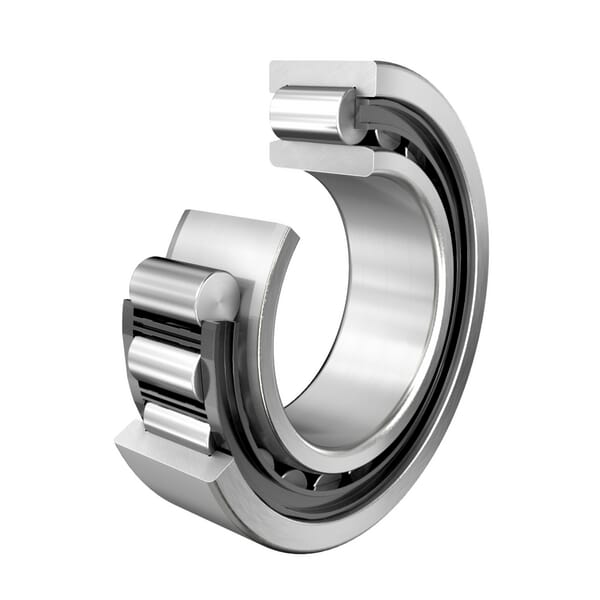

FAG Cylindrical roller bearing NJ2309EXLTVP2
