£23.85
excl. VAT
£28.62 incl. VAT
£28.62
incl. VAT
£23.85 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Basic radial load dynamic | 32500 N |
|---|---|
| Basic radial load static | 19800 N |
| Bearing balls distance to locking side end | 21 mm |
| Bearing inner ring width | 49.2 mm |
| Bearing inside diameter | 40 mm |
| Flange thickness | 16 mm |
| Grease nipple thread diameter | M6 |
| Housing height | 36 mm |
| Housing type | Square flange |
| Housing width | 130 mm |
| Includes | Bearing block, Bearing, Grease nipple |
| Long description | These square ball bearing units with four bolt holes are pre-assembled and pre-lubricated. This makes them rapidly deployable. The self-aligning spherical outer ring of the wide inner ring ball bearing compensates for shaft misalignment. |
| Manufacturer | Schaeffler |
| Mounting holes diameter | 16 mm |
| Mounting holes distance | 102 mm |
| Number of mounting holes | 4 |
| Original number equivalent | UCF208-J7 |
| Product details | Inner bearing has extended inner ring on both sides with 2 adjusting screws, Regreasable, Self-aligning ball bearing, Wide inner ring ball bearing |
| Properties | Inner bearing has extended inner ring with 2 adjusting screws on both sides, Can be subsequently lubricated |
| Pros | Highly suitable for limited installation spaces, Assembled, ready for use, Pre-lubricated |
| Total height | 51.2 mm |
| Total length | 130 mm |
| Unit | Each |
Logistics
| EAN | 4047643247634 |
|---|---|
| Unit of measure | EA |
| Weight | 1915 g |
| Dimensions | 145 × 135 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000380626
FAG Housing unit UCF UCF207
£20.81 excl.
£24.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000136642

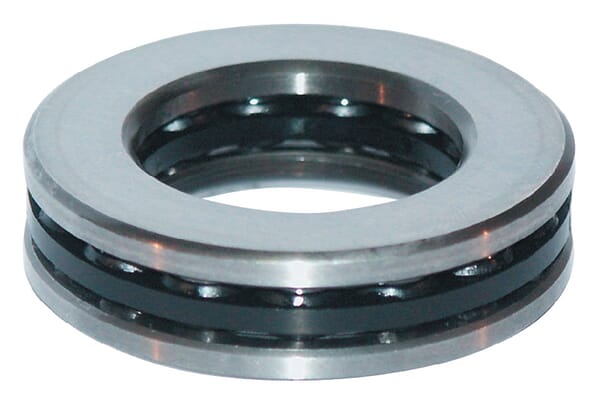

FAG Thrust ball bearing 51307
£46.39 excl.
£55.67 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000325001

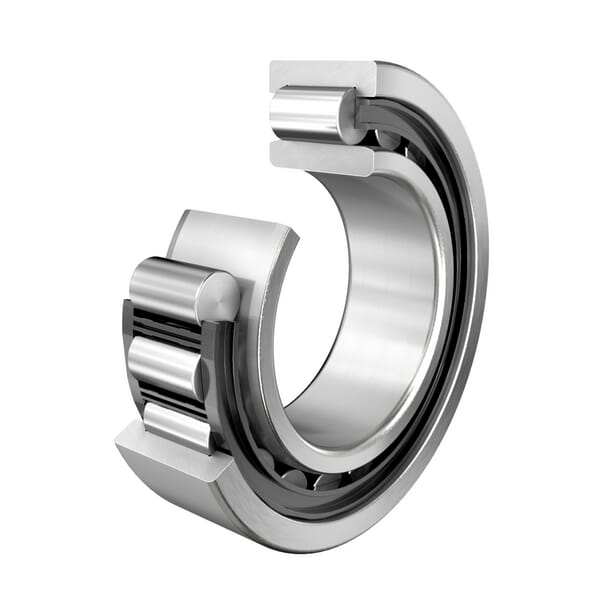

FAG Cylindrical roller bearing NJ NJ214
£184.09 excl.
£220.91 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000151072

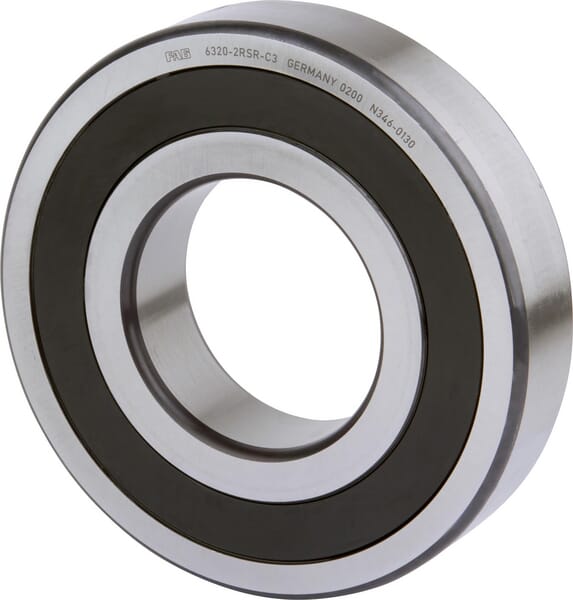

FAG Deep groove ball bearing 100x215x47mm INA/FAG 63202RSRC3
