£162.82
excl. VAT
£195.38 incl. VAT
£195.38
incl. VAT
£162.82 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 211000 N |
|---|---|
| Basic radial load static | 226000 N |

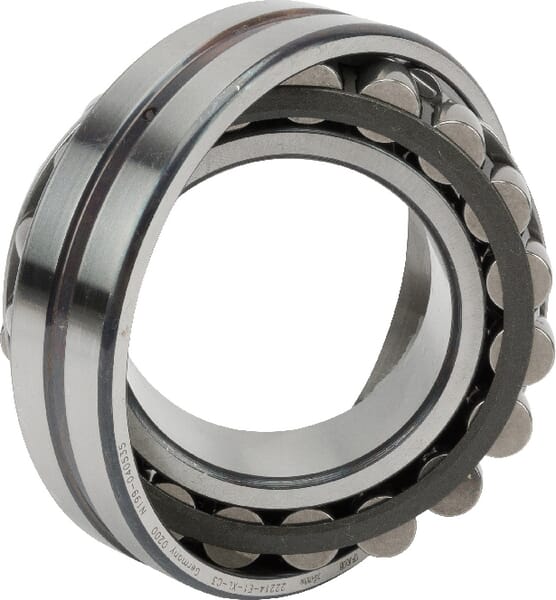

| Bearing model type | Spherical roller bearings |
| Bore type | Cylindrical |
| BWidth | 31 mm |
| dInside diameter | 70 mm |
| DOutside diameter | 125 mm |
| Includes | Spherical roller bearing with cylindrical inner ring |
| Inner ring shape | Cylindrical |
| Manufacturer | Schaeffler |
| Max rotation speed | 6700 r/min |
| Max working temperature | 200 °C |
| Min working temperature | -30 °C |
| Original number equivalent | 22214-E1-XL-C3 |
| Product details | Heavy radial loads and skewed positions of the axle, Pumps and ventilators, Cranes, Conveyor belts |
| Pros | Longer service life at higher temperatures |
| Radial internal clearance code | C3 |
| Ref rotation speed | 3950 r/min |
| Rows number | 2 |
| Stub diameter | 3.2 mm |
| Unit | Each |
| Weight | 0.016 kg |
Logistics
| EAN | 4026677807021 |
|---|---|
| Unit of measure | EA |
| Weight | 1614 g |
| Dimensions | 130 × 130 × 32 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000072570
FAG Spherical roller bearing 70x125x31mm INA/FAG 22214E1AXLMC3
£226.22 excl.
£271.46 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247477
FAG Sealing rings for SNV DH516
£22.06 excl.
£26.47 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000285438

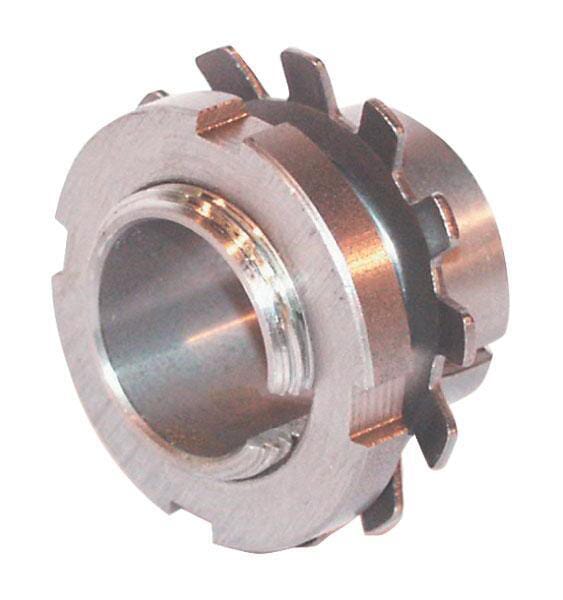

FAG Adaptor sleeve with nut 180x240x120mm H3040
