Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| B1Locking collar and inner ring width | 31 mm |
| Ball centre to end distance | 7.5 mm |
| Ball centre to grease hole distance | 3.9 mm |
| Basic radial load dynamic | 14000 N |
| Basic radial load static | 7800 N |
| Consists of | Clamp bearing, Clamp ring |
| dInside diameter | 25 mm |
| DspOutside diameter | 52 mm |
| Inner ring width | 21.4 mm |
| Locking collar outside diameter | 37.5 mm |
| Long description | Ball bearing inserts INA/FAG, series GRAE..NPPB |
| Manufacturer | Schaeffler |
| Original number equivalent | GRAE25-NPP-B-FA107/125.5 |
| Outer ring width | 15 mm |
| Outside diameter of inner ring | 30.5 mm |
| Properties | One-sided extended inner ring with clamp ring, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Unit | Each |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4012802812169 |
|---|---|
| Unit of measure | EA |
| Weight | 192 g |
| Dimensions | 80 × 50 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000286898
INA Bearing insert 25x52x15mm INA/FAG GRAE25NPPBFA1255
£35.17 excl.
£42.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000349647
INA Needle roller bearing RNA4900RSRXL
£34.98 excl.
£41.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287245

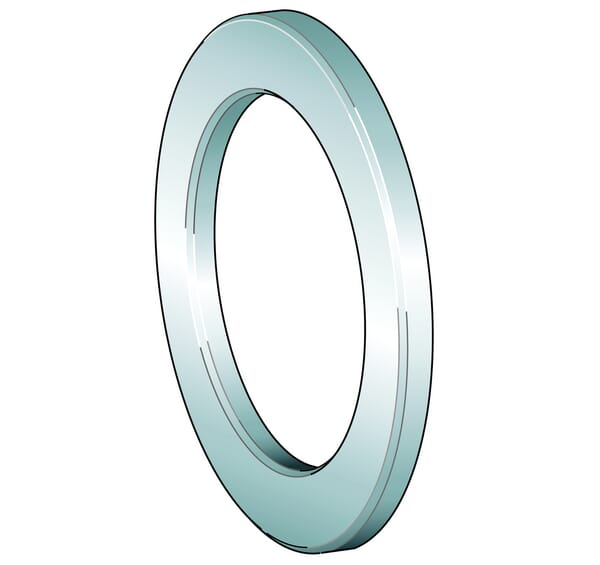

INA Axial washer GS81209
£40.09 excl.
£48.11 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000347042

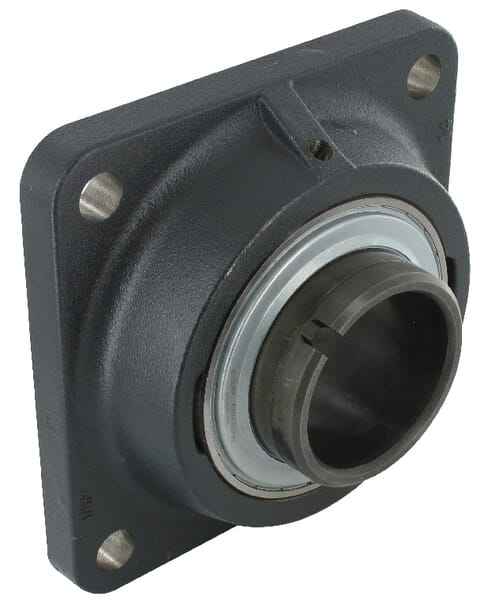

INA Housing unit RCJL RCJL70
£355.41 excl.
£426.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000312548

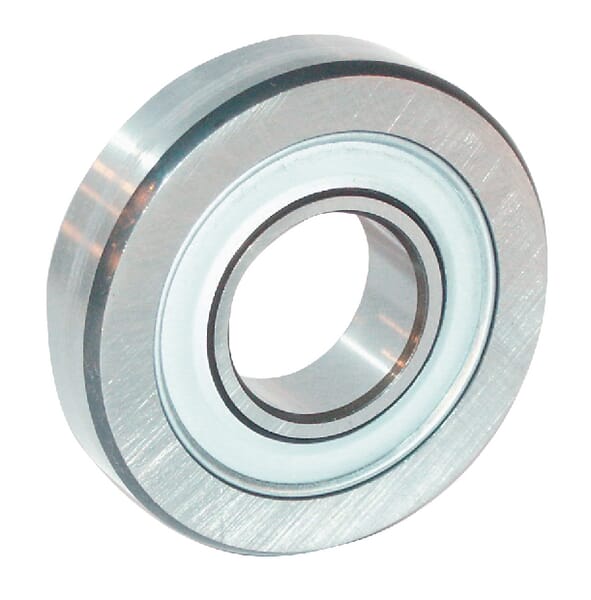

INA Track roller bearing LR2092RSR
£132.03 excl.
£158.44 incl.
In stock
Expected to ship on Monday 21 September
BPA000281211

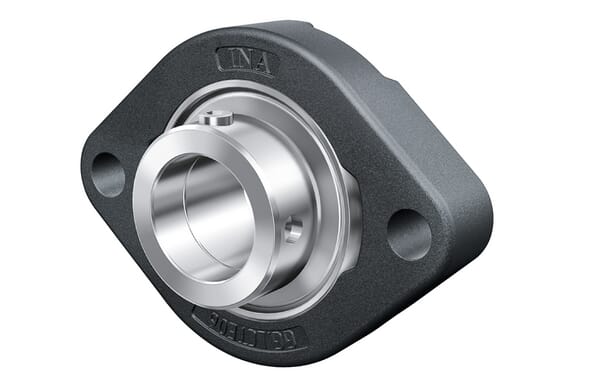

INA Housing unit GLCTEY25
