£35.17
excl. VAT
£42.20 incl. VAT
£42.20
incl. VAT
£35.17 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| B1Locking collar and inner ring width | 31 mm |
| Ball centre to end distance | 7.5 mm |
| Ball centre to grease hole distance | 3.9 mm |
| Basic radial load dynamic | 14000 N |
| Basic radial load static | 7800 N |
| Consists of | Clamp bearing, Clamp ring |
| dInside diameter | 25 mm |
| DspOutside diameter | 52 mm |
| Inner ring width | 21.4 mm |
| Locking collar outside diameter | 37.5 mm |
| Long description | Ball bearing inserts INA/FAG, series GRAE..NPPB |
| Manufacturer | Schaeffler |
| Original number equivalent | GRAE25-NPP-B-FA125.5 |
| Outer ring width | 15 mm |
| Outside diameter of inner ring | 30.5 mm |
| Properties | One-sided extended inner ring with clamp ring, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Unit | Each |
| Weight | 0.19 kg |
| Wrench/spanner size | 3.0 mm |
Logistics
| EAN | 4012802813142 |
|---|---|
| Unit of measure | EA |
| Weight | 192 g |
| Dimensions | 57 × 57 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000286897
INA Bearing insert 25x52x15mm INA/FAG GRAE25NPPBFA107125
£33.66 excl.
£40.39 incl.
In stock
Expected to ship on Monday 21 September
BPA000349088

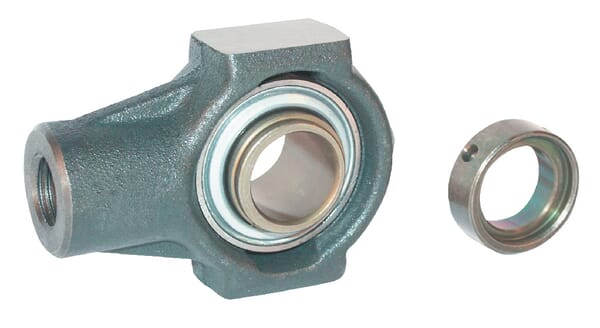

INA Housing unit RHE RHE20
£59.78 excl.
£71.74 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000280643

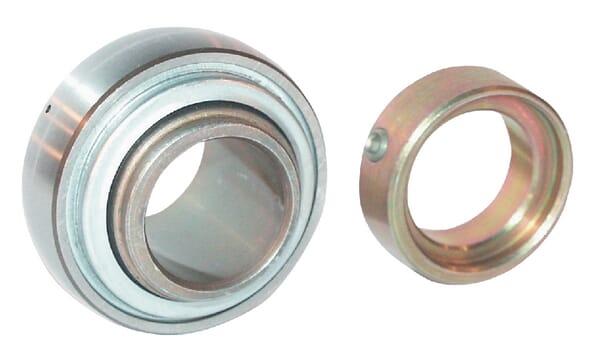

INA Bearing insert 60x110x24mm INA/FAG GE60KTTB
£167.52 excl.
£201.02 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000325532

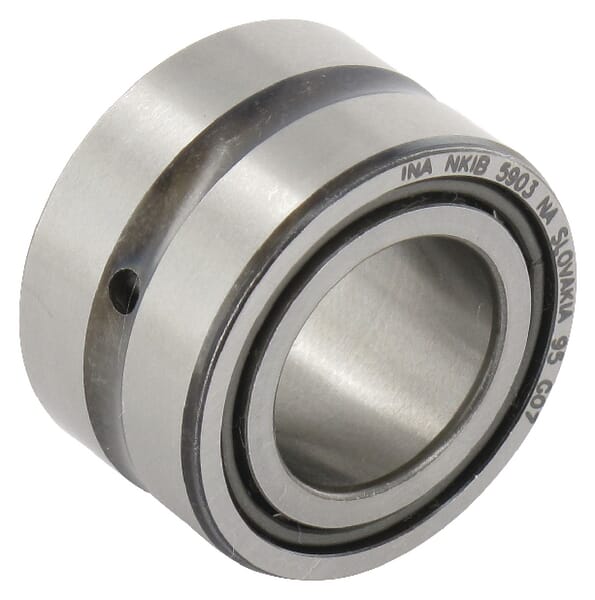

INA Needle roller/angular ball brg NKIB5912XL
£319.44 excl.
£383.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000291994

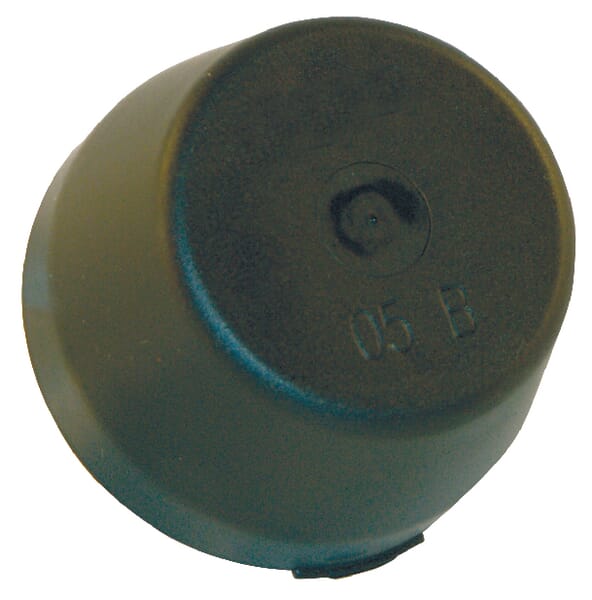

INA End cover KASK09SGHLA
