£232.59
excl. VAT
£279.11 incl. VAT
£279.11
incl. VAT
£232.59 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

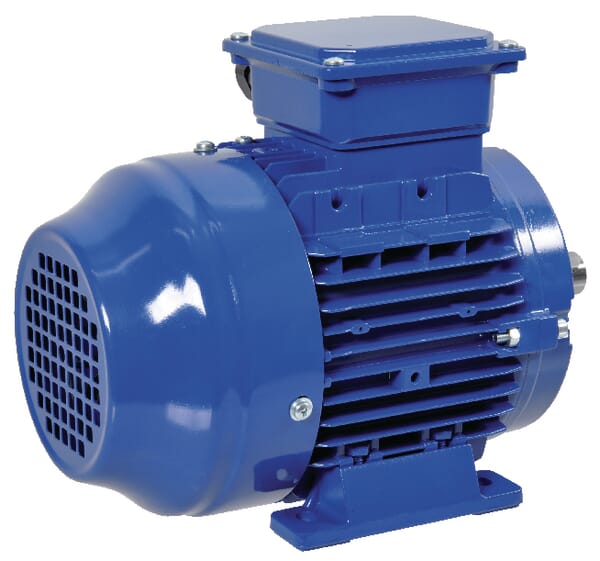

Product details

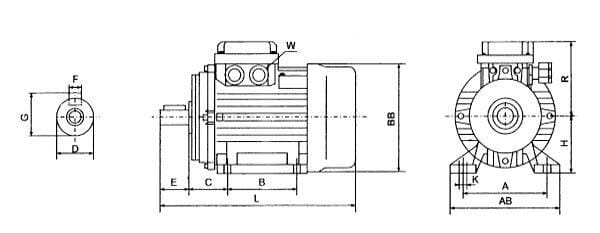

| ABDistance outside foot width side | 175 mm |
|---|---|
| ADistance bore foot width side | 140 mm |
| BBDiameter fan cover | 176 mm |
| BDistance bore foot length side | 100 mm |
| CDistance front motor till center first mounting hole | 56 mm |
| cos φ | 0.78 |
| GHeight shaft with key | 20 mm |
| HDistance underside foot till centre shaft | 90 mm |
| In | 2.42 A |
| KDiameter bore foot | 10 mm |
| Key width | 8 mm |
| LTotal length | 325 mm |
| Moments of inertia (kgm²) | 0.0038 kg·m² |
| N1 | 1425 r/min |
| Noise level | 61 dB(A) |
| Phase ~ | 3 |
| PN | 1.1 kW |
| Power factor cos phi 100% | 0.74 |

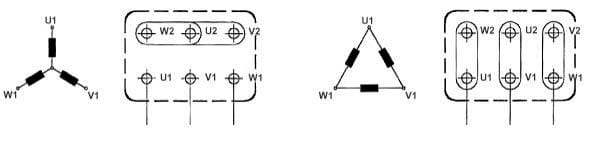

| Product details | Motor is equipped with A-brand bearing, Increased efficiency compared to IE2 class, High operational reliability, Economical with energy, good for the environment., Equipped with PTCs, IP55, Insulation class F, IEC 60034-30, Up to size 132: aluminium housing, From size 160 onwards: cast iron housing, 300 = star connection, 500 = triangular connection (star/triangle start-up possible) |
| RDistance center shaft to end terminal box | 150 mm |
| Shaft diameter | 24 mm |
| Shaft length | 50 mm |
| Swivel | M20 x 1,5 |
| Unit | Each |
| Voltage | 230/400V 50 Hz V |
| Weight | 15.1 kg |
Logistics
| EAN | 8716106885664 |
|---|---|
| Unit of measure | EA |
| Weight | 15600 g |
| Dimensions | 330 × 260 × 260 mm |
| Dangerous goods | No |
You might also like
BPA000305871

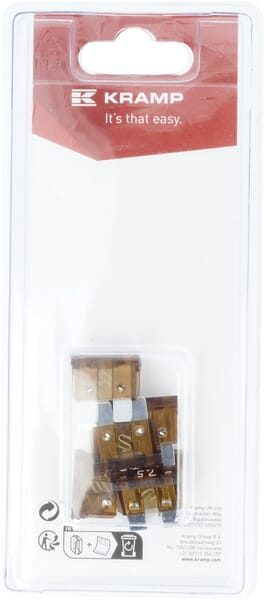

Kramp Fuse 7.5A x 20mm, Blade (6) KRSI22075P06B
£1.59 excl.
£1.91 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000318741
Kramp Spur gear module 5 - Z=30 MOD530
£96.94 excl.
£116.33 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000046532
Kramp Oil seal 145x175x15mm type:CB Viton Stainless steel DIN 3760 1x 14517515CBVP001
£108.13 excl.
£129.76 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000381940
Kramp Mower blade LH 93x48x3mm bore diameter 19mm Suitable for PZ 25 pack VGTF71KR
£0.88 excl.
£1.06 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000297205
Kramp Work gloves grey leather size 11/2XL Protect by KG0800211
£10.80 excl.
£12.96 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000253403

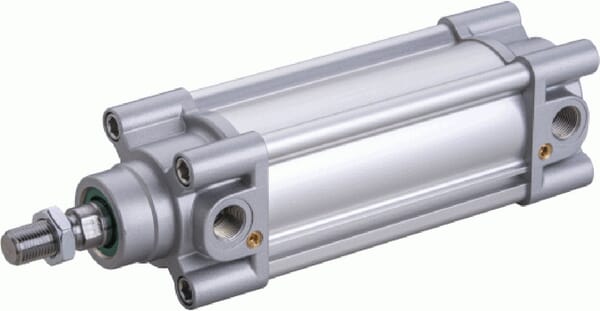

Kramp Standard cylinder DN80550CMG2
