£2,028.50
excl. VAT
£2,434.20 incl. VAT
£2,434.20
incl. VAT
£2,028.50 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

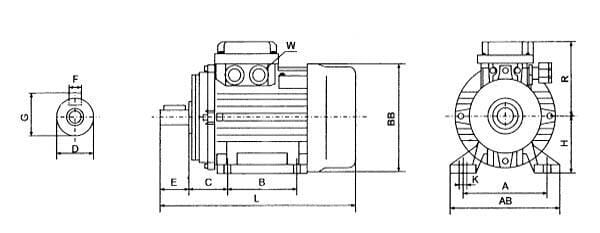

| ABDistance outside foot width side | 314 mm |
|---|---|
| ADistance bore foot width side | 254 mm |
| BBDiameter fan cover | 313 mm |
| BDistance bore foot length side | 210 mm |
| CDistance front motor till center first mounting hole | 108 mm |
| cos φ | 0.91 |
| Frequency | 50 Hz |
| GHeight shaft with key | 37 mm |
| HDistance underside foot till centre shaft | 160 mm |
| In | 19.09 A |
| KDiameter bore foot | 15 mm |
| Key width | 12 mm |
| LTotal length | 605 mm |
| Material housing | Cast iron |
| Moments of inertia (kgm²) | 0.1036 kg·m² |
| N1 | 1440 r/min |
| Noise level | 75 dB(A) |
| Phase ~ | 3 |
| PN | 11 kW |
| Power factor cos phi 100% | 0.84 |

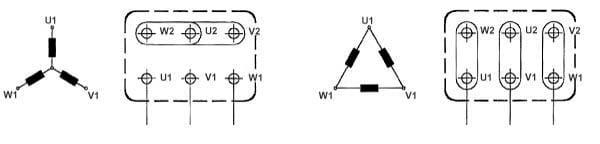

| Product details | Motor is equipped with A-brand bearing, Increased efficiency compared to IE2 class, High operational reliability, Economical with energy, good for the environment., Equipped with PTCs, IP55, Insulation class F, IEC 60034-30, Up to size 132: aluminium housing, From size 160 onwards: cast iron housing, 300 = star connection, 500 = triangular connection (star/triangle start-up possible) |
| RDistance center shaft to end terminal box | 242 mm |
| Shaft length | 110 mm |
| Swivel | M32 x 1,5 |
| Torque | 72.45 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 127.0 kg |
Logistics
| EAN | 8716106888085 |
|---|---|
| Unit of measure | EA |
| Weight | 160000 g |
| Dimensions | 745 × 580 × 405 mm |
| Dangerous goods | No |
