£40.10
excl. VAT
£48.12 incl. VAT
£48.12
incl. VAT
£40.10 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| ECore disc thickness | 12 |
| FWorking width | 16 mm |
| Hub diameter | 92 mm |
| Hub width | 25 mm |
| JChamber diameter | 162 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 9 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 194 mm |
| PPitch diameter | 190 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486250756 |
|---|---|
| Unit of measure | EA |
| Weight | 1786 g |
| Dimensions | 195 × 195 × 25 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000381227

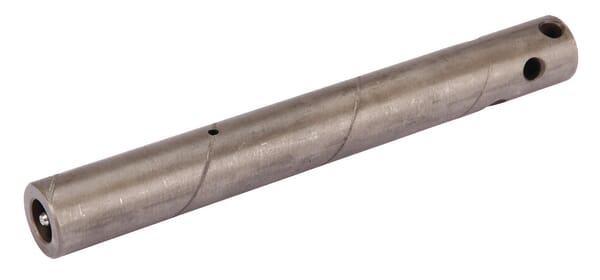

Kramp Pin 50x260mm UNSGGS50260CR
£119.13 excl.
£142.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000198812
Kramp Hex bolt M8x80 Hot dip galvanised, 8.8 931880TV
£0.50 excl.
£0.60 incl.
In stock
Expected to ship on Friday 18 September
BPA000343414

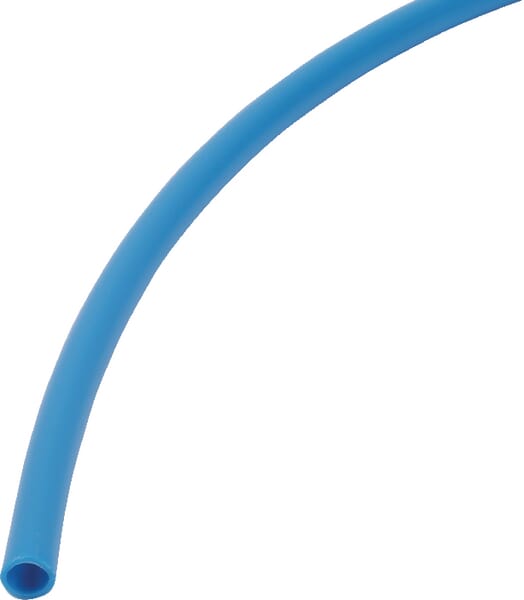

Kramp PUH hose 8X6 blue PUH86BU
£1.31 excl.
£1.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000309512
Kramp Terminal blade male, yellow, 4-6mm² 6.3x0.8mm (50x) LA9320CKR
£0.15 excl.
£0.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000319946
Kramp Bearing NWB07122
£47.22 excl.
£56.66 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000201279

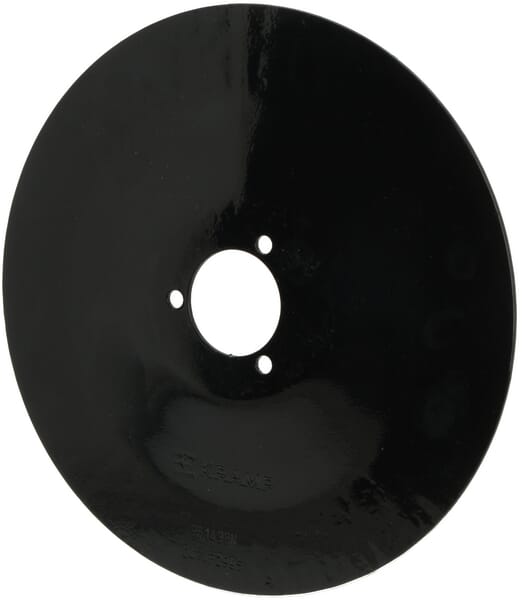

Kramp Plain disc 300x3.0mm 951498N
