£76.51
excl. VAT
£91.81 incl. VAT
£91.81
incl. VAT
£76.51 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 2, type - male/female | Female |
|---|---|
| Connection thread diameter | M18 |
| Connection thread pitch | 1.50 mm |
| Connection thread type | Metric |
| Connection type | Thread |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 27.0 mm |
| Dedicated pipe diameter | 12 mm |
| Housing height | 38 mm |
| Housing length | 43 mm |
| Housing material | Stainless steel |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 400 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M5 |
| Nominal inner diameter | 10 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Outside diameter | 42 mm |
| Product details | 2-way ball valves, Round construction, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Series code | L |
| Total length | 75 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 0.5 kg |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 556 g |
| Dimensions | 168 × 78 × 44 mm |
| Dangerous goods | No |
You might also like
BPA000237831
PH Hydraulik Ball valve 12L SS BVM12LSS
£76.51 excl.
£91.81 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000287653
PH Hydraulik Straight SwiveL F/F 8S x 8S SS GVO8S8SSS
£12.14 excl.
£14.57 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344137
PH Hydraulik Insert DN08-M18x1.5-12L SS PGLO818SS
£16.23 excl.
£19.48 incl.
In stock
Expected to ship on Thursday 24 September

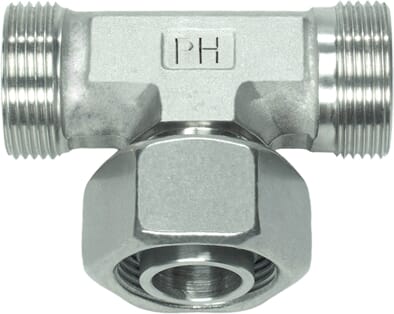

BPA000268129
