£76.51
excl. VAT
£91.81 incl. VAT
£91.81
incl. VAT
£76.51 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Ball material | Stainless steel 1.4571 |
|---|---|
| Connection 2, type - male/female | Female |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 27.0 mm |
| Dedicated pipe diameter | 10 mm |
| Housing height | 52 mm |
| Housing length | 43 mm |
| Housing material | Stainless steel 1.4571, Stainless steel AISI 316Ti |
| Housing width | 32 mm |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M5 |
| Nominal inner diameter | 10 mm |
| Number of ports | 2 |
| Product details | 2-way ball valves, Block shape, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Total length | 74 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 502 g |
| Dimensions | 180 × 68 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000237850
PH Hydraulik Ball valve 12L SS BVR12LSS
£76.51 excl.
£91.81 incl.
In stock
Expected to ship on Thursday 24 September
BPA000338510
PH Hydraulik Insert DN20-3/4 BSP-45° SS PF201245SS
£41.97 excl.
£50.36 incl.
In stock
Expected to ship on Thursday 24 September
BPA000258274
PH Hydraulik Swivel Connector M/F 42L x 1-1/2" BSP WD SS EGESD42LR112WDSS
£97.04 excl.
£116.45 incl.
In stock
Expected to ship on Thursday 24 September

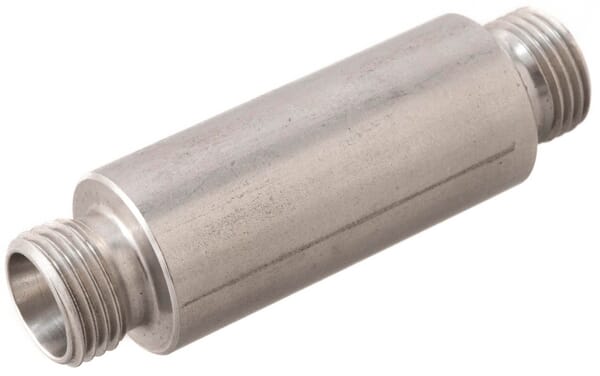

BPA000263254
