Product details
| Body height | 45 mm |
|---|---|
| Connection 1, thread diameter | M20 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSPP |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 27.0 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 length | 20 mm |
| Connection no 1 wrench size | 24.0 mm |
| DIN standard | 3865 |
| Inside diameter | 8 mm |
| ISO standard | 8434-1-S |
| Material | Stainless steel |
| Max working pressure | 630 BAR |

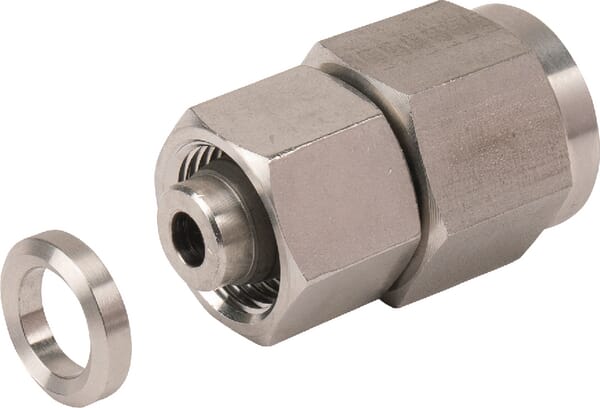

| Product details | The seal ring for the pressure gauge is not supplied with the coupling., The seal ring is offered as an accessory., EMASD pressure gauge coupling with BSPP inner thread and swivelling cutting ring coupling. |
| Pros | Create a pressure gauge connection at any desired point in a hydraulic system. |
| Series connection 1 | 12S |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 133 g |
| Dimensions | 55 × 30 × 30 mm |
| Dangerous goods | No |
