£60.78
excl. VAT
£72.94 incl. VAT
£72.94
incl. VAT
£60.78 excl. VAT
In stock
Expected to ship on Thursday 24 September

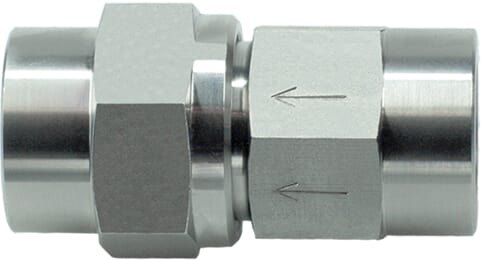

Product details
| Connections thread diameter | 1/2 Inch |
|---|---|
| Connections thread length | 15 mm |
| Connections thread type | BSP |
| Designed for medium | n/a |
| Includes | Check valve |
| Long description | Spring-loaded check valves, also known as spring check valves, are hydraulic valves designed to allow fluid to pass in one direction and block flow in the opposite direction. These pre-load valves are frequently used to secure installations and prevent fluid from flowing back into the system when pressure is reduced or when the pump is not in operation. |
| Material | Steel |
| Max flow rate | 45 l/min |
| Max working pressure | 350 BAR |
| Number of connections | 1 |
| Opening pressure | 0.5 BAR |
| Product details | BSP straight female thread, The check valves are available in different spring pressures and are factory adjusted, As a feeder, preload valve or blocking valve at high volume flow and high pressure, Spring loaded valve in stainless steel housing, Suitable for fitting between pipes, Flow direction is indicated by an arrow on the housing, Available opening pressures: 0.5 bar - 10 bar, Pressure range (bar): Max. 350 bar, depending on the construction size |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Surface treatment | n/a |
| Total length | 71 mm |
| Type | Single |
| Unit | Each |
| Wrench/spanner size | 32.0 mm |
| Wrench/Spanner size 2 | 36.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 346 g |
| Dimensions | 90 × 45 × 45 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000237784
PH Hydraulik Three way ball valve T-bore 1" BSP SS BV3B16TSS
£519.51 excl.
£623.41 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000307984

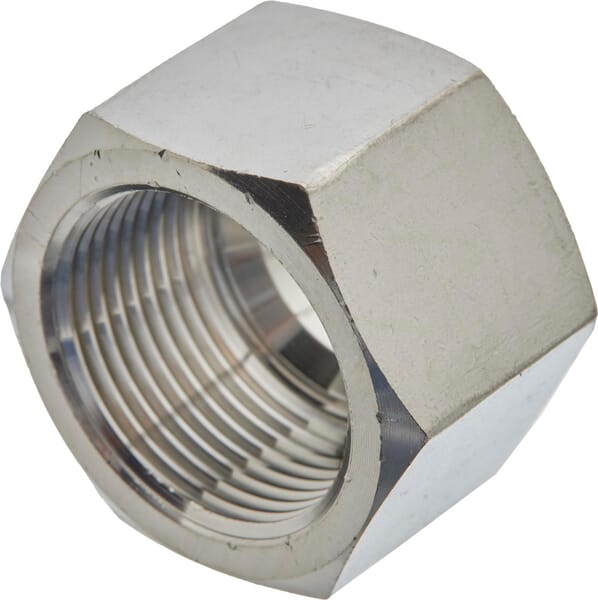

PH Hydraulik Nut 16S M24x1.5 SS M16SSS
£4.28 excl.
£5.14 incl.
In stock
Expected to ship on Thursday 24 September
BPA000344085

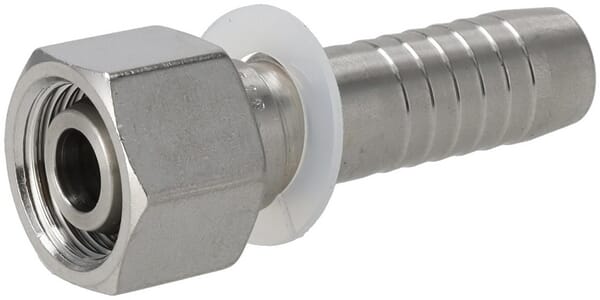

PH Hydraulik Insert DN05-M12x1.5-6L SS PGLO512SS
£17.76 excl.
£21.31 incl.
In stock
Expected to ship on Thursday 24 September
BPA000348120
PH Hydraulik Reducing Bush M/F 1" BSPx1/4" BSP WD SS REDR114WDSS
£18.67 excl.
£22.40 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000268350

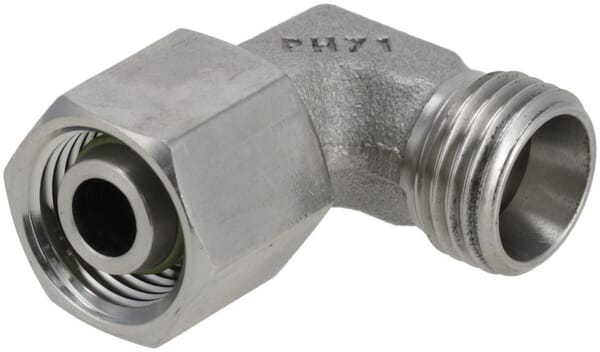

PH Hydraulik Adjustable Elbow 8S SS EWSD8SSS
£13.27 excl.
£15.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287784

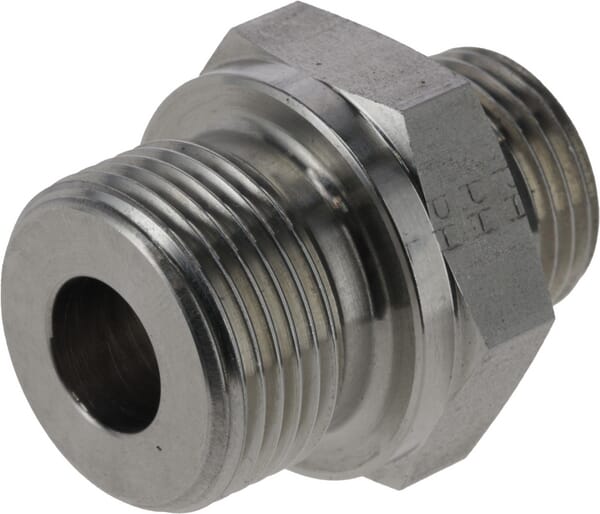

PH Hydraulik Male Stud coupling 10L x M18 SS GES10LM18SS
