£18.67
excl. VAT
£22.40 incl. VAT
£22.40
incl. VAT
£18.67 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection 1, thread diameter | 1 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 14 mm |
| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 41.0 mm |
| Connection no 1 center to end distance | 18 mm |
| DIN standard | 228 |
| Includes | Coupling with pre-assembled WD seal |
| Material | Stainless steel AISI 316L |
| Max working pressure | 630 BAR |
| Product details | Reducing fittings, BSP with straight thread, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Standard: DIN / ISO 228, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 202 g |
| Dimensions | 47 × 47 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000341421
PH Hydraulik Cutting Ring 14S SS PR14SSS
£1.93 excl.
£2.32 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000399998

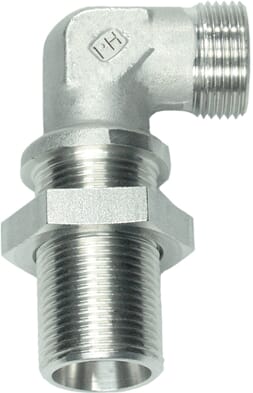

PH Hydraulik Bulkhead Elbow 35L SS WSS35LSS
£110.97 excl.
£133.16 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000237844
PH Hydraulik Ball valve 6L SS BVR06LSS
£76.94 excl.
£92.33 incl.
In stock
Expected to ship on Thursday 24 September
BPA000348229
PH Hydraulik Reducing coupling 22Lx15L SS REDSD2215LSS
£23.54 excl.
£28.25 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000336557

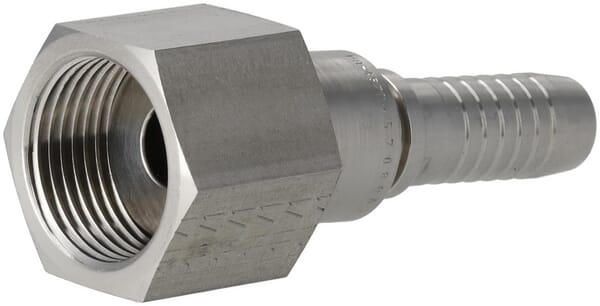

PH Hydraulik Insert DN16-1"3/16-ORFS SS PAV1619SS
£56.77 excl.
£68.12 incl.
In stock
Expected to ship on Thursday 24 September
BPA000313148

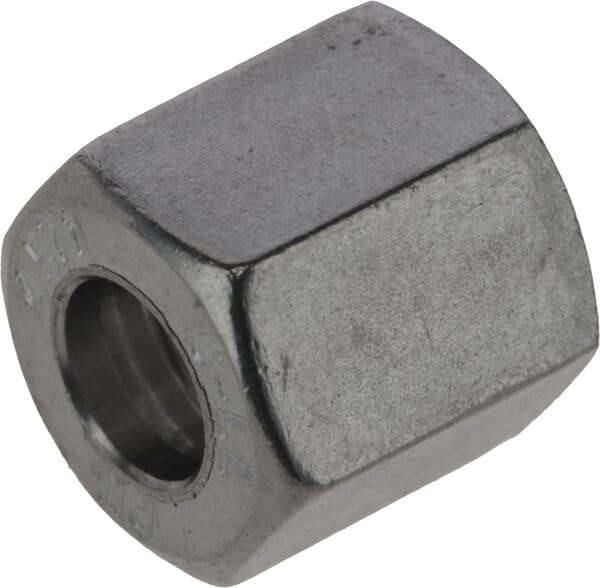

PH Hydraulik Nut 6LL M10x1 SS M6LLSS
