£30.00
excl. VAT
£36.00 incl. VAT
£36.00
incl. VAT
£30.00 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type code | DKOS |
| Connection 2, diameter | 16 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection centre to insert distance | 50 mm |
| Connection no 1 center to end distance | 30 mm |
| Connection no 1 diameter | 16 mm |
| Includes | Coupling with pre-assembled swivel nuts |
| Product details | Metric double glands, Pre-assembled union nuts with cone and FPM O-rings, Standard: W DIN 3861, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for high temperatures, Food-safe, Durable |
| Series connection 1 | 16S |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 193 g |
| Dimensions | 60 × 32 × 32 mm |
| Dangerous goods | No |
You might also like
Free shipping

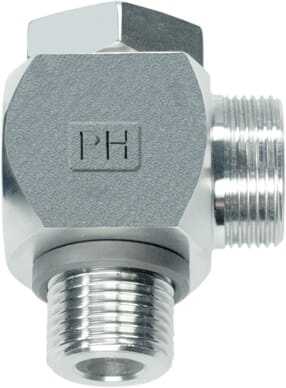

BPA000355149
PH Hydraulik Banjo Elbow 30S x 1-1/4" BSP SS RSWS30SR114SS
£435.51 excl.
£522.61 incl.
In stock
Expected to ship on Wednesday 23 September

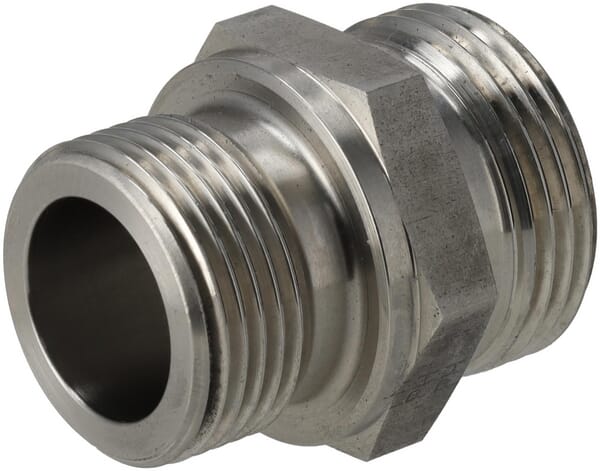

BPA000288347
PH Hydraulik Male Stud coupling 8L x 1/2" BSP SS GES8LR12SS
£6.68 excl.
£8.02 incl.
In stock
Expected to ship on Thursday 24 September
BPA000396281
PH Hydraulik Blanking End 14S SS VSK14SSS
£7.38 excl.
£8.86 incl.
In stock
Expected to ship on Wednesday 23 September

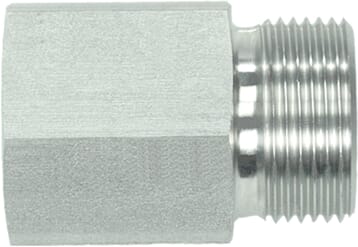

BPA000279872
