£10.28
excl. VAT
£12.34 incl. VAT
£12.34
incl. VAT
£10.28 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 diameter | 16 mm |
| Connection no 1 wrench size | 19.0 mm |
| DIN standard | 2401, 259, 2353 |
| Includes | Coupling with O-ring, WD seal |
| ISO standard | 228 |
| Material | Stainless steel AISI 316L |
| Max working pressure | 315 BAR |
| Product details | Screw-in side: BSP with straight thread, Metric pre-assembled union nuts with cone and FPM O-ring, WD = FPM/Viton flat seal on screw-in side, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 10L |
| Shape | Straight |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 56 g |
| Dimensions | 43 × 22 × 19 mm |
| Dangerous goods | No |
You might also like
BPA000282482
PH Hydraulik Banjo bolt M26x1,5 SS HBM26SS
£19.21 excl.
£23.05 incl.
In stock
Expected to ship on Thursday 24 September
BPA000343626

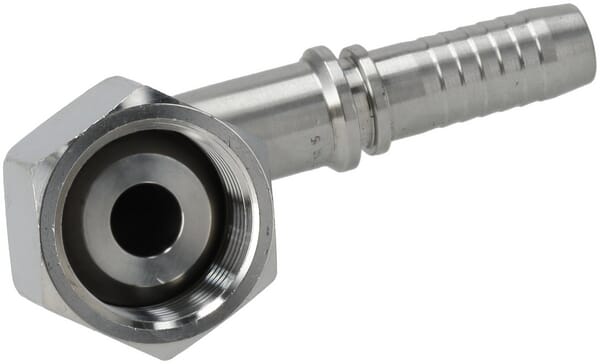

PH Hydraulik Insert DN06-3/8 BSP-90º SS PF6690SS
£23.72 excl.
£28.46 incl.
In stock
Expected to ship on Thursday 24 September
BPA000336321
PH Hydraulik Insert DN13-7/8 UNF SS PA1314SS
£15.76 excl.
£18.91 incl.
In stock
Expected to ship on Thursday 24 September
BPA000268330

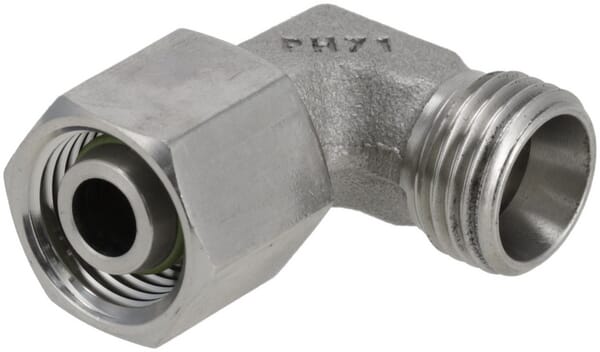

PH Hydraulik Adjustable Elbow 25S SS EWSD25SSS
£73.51 excl.
£88.21 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287314
PH Hydraulik Bulkhead Coupling 10S SS GSS10SSS
£12.41 excl.
£14.89 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000279908

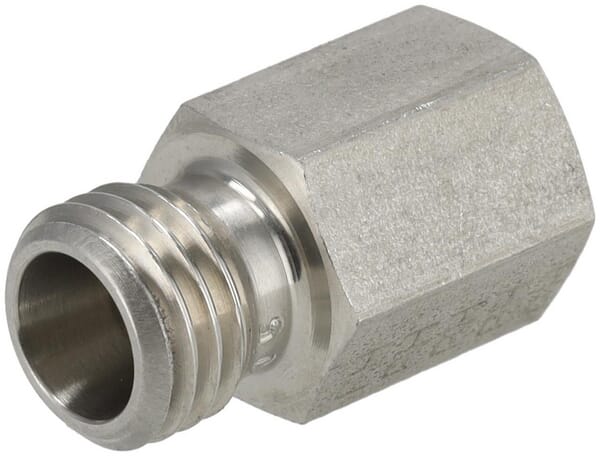

PH Hydraulik Female Stud coupling 8S x M14 SS GAS8SM14SS
