£816.01
excl. VAT
£979.21 incl. VAT
£979.21
incl. VAT
£816.01 excl. VAT
Free shipping
In stock
Expected to ship on Friday 25 September
Product details
| Application range | Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc., Biogas plants: food waste, slurry etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
|---|---|

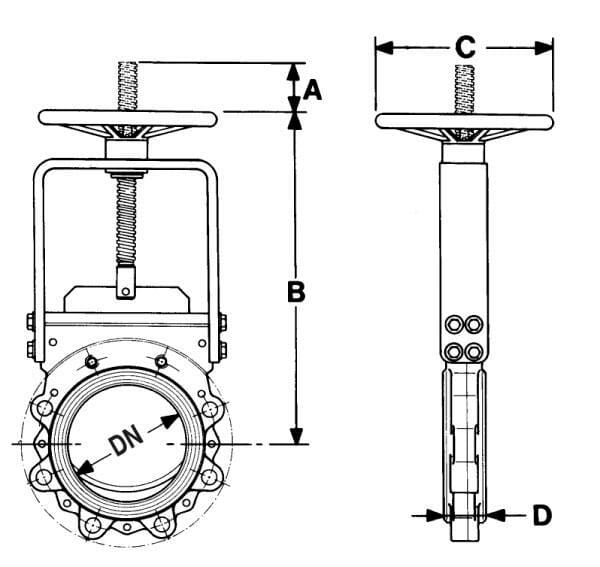

| ASpindle height | 140 mm |
| Benefits | No stagnant areas, Perfect bi-directional seal |
| BPassage hole centre to wheel distance | 459 mm |
| CHand wheel diameter | 250 mm |
| Details | Valve end plate with cutting edge, Integrated through-flow |
| DFlange thickness | 60 mm |
| DNPassage hole nominal diameter | 150 mm |
| Flange mounting bolts/holes distance | 150 mm |
| Flange mounting bolts/holes thread diameter | M12 |
| Flange mounting holes number | 4 |
| Max working pressure | 2.5 BAR |
| Properties | Two-piece body, Terminal ring around the plate, Transverse seal during operation, Refillable sealant, Cast metal housing, Stainless steel valve plate |
| Type of drive/steering | Hand wheel |
| Unit | Each |
| Wheel to bottom distance | 591 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 21800 g |
| Dimensions | 700 × 300 × 300 mm |
| Dangerous goods | No |
