£2,152.39
excl. VAT
£2,582.87 incl. VAT
£2,582.87
incl. VAT
£2,152.39 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc., Biogas plants: food waste, slurry etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
|---|---|
| Benefits | No stagnant areas, Perfect bi-directional seal |

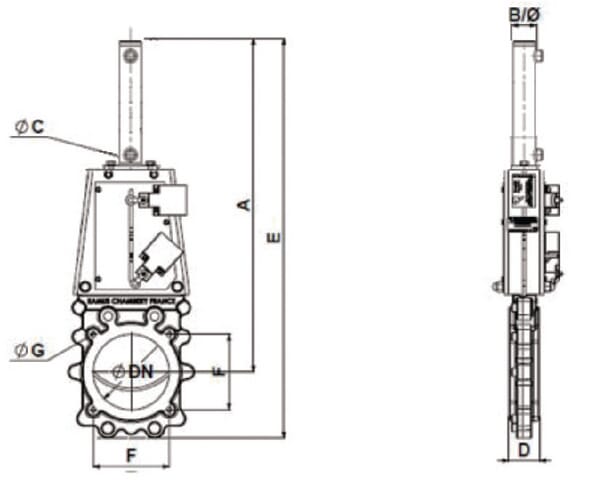

| B/ØCylinder outside diameter | 40 mm |
| Details | Valve end plate with cutting edge, Integrated through-flow |
| DTotal width | 60 mm |
| ETotal height | 1096 mm |
| Max working pressure | 2.5 BAR |
| ØCCylinder mounting thread diameter | 3/8 Inch |
| ØDNPassage hole nominal diameter | 250 mm |
| Passage hole centre to lever end distance | 905 mm |
| Properties | Two-piece body, Terminal ring around the plate, Transverse seal during operation, Refillable sealant, Cast metal housing, Stainless steel valve plate |
| Unit | Each |
| Weight | 40 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 30600 g |
| Dimensions | 1160 × 360 × 90 mm |
| Dangerous goods | No |
