£137.07
excl. VAT
£164.48 incl. VAT
£164.48
incl. VAT
£137.07 excl. VAT
Free shipping
In stock
Expected to ship on Friday 25 September
Product details

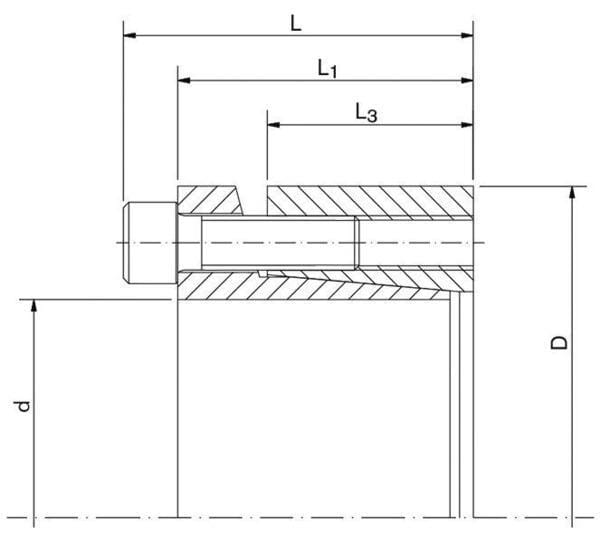

| dDiameter shaft max. | 30 mm |
|---|---|
| Dg (Clamping thread) | M6 x 20 |
| DOutside diameter | 55 mm |
| F ax (Transmissible axial force) | 40 kN |
| L1Length L1 | 31 mm |
| L3Length L3 | 21.7 mm |
| LLength | 37 mm |

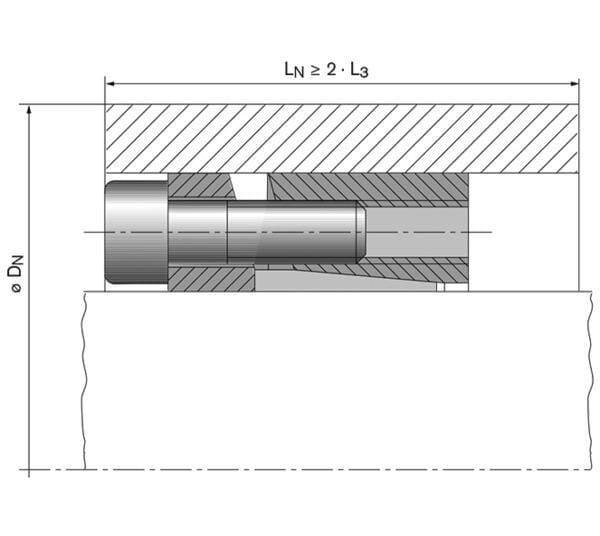

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 83 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 82 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 68 mm |
| Number of bolts | 5 |
| pN (Hub pressure at given TA) | 100 N/mm² |
| pW (Shaft pressure at given TA) | 240 N/mm² |
| TA (Locking torque) | 17 N·m |
| Tmax (Maximum transmissible torque | 600 N·m |
| T (Transmissible tork at given TA) | 530 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 367 g |
| Dimensions | 60 × 60 × 41 mm |
| Dangerous goods | No |
