£134.31
excl. VAT
£161.17 incl. VAT
£161.17
incl. VAT
£134.31 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

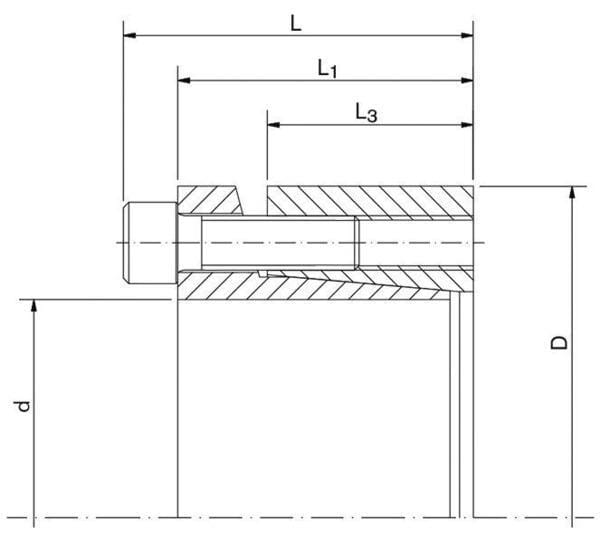

| dDiameter shaft max. | 25 mm |
|---|---|
| Dg (Clamping thread) | M6 x 20 |
| DOutside diameter | 50 mm |
| F ax (Transmissible axial force) | 40 kN |
| L1Length L1 | 31 mm |
| L3Length L3 | 21.7 mm |
| LLength | 37 mm |

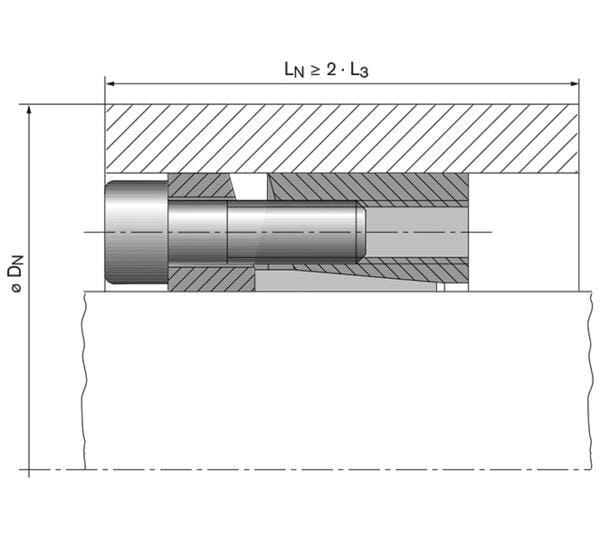

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 80 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 68 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 63 mm |
| Number of bolts | 5 |
| pN (Hub pressure at given TA) | 110 N/mm² |
| pW (Shaft pressure at given TA) | 290 N/mm² |
| TA (Locking torque) | 17 N·m |
| Tmax (Maximum transmissible torque | 500 N·m |
| T (Transmissible tork at given TA) | 440 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 324 g |
| Dimensions | 87 × 71 × 60 mm |
| Dangerous goods | No |
