£126.37
excl. VAT
£151.64 incl. VAT
£151.64
incl. VAT
£126.37 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

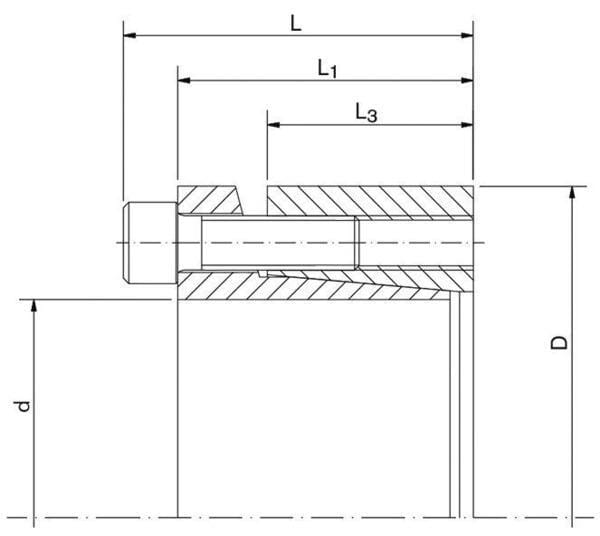

| dDiameter shaft max. | 20 mm |
|---|---|
| Dg (Clamping thread) | M6 x 20 |
| DOutside diameter | 47 mm |
| F ax (Transmissible axial force) | 30 kN |
| L1Length L1 | 31 mm |
| L3Length L3 | 21.7 mm |
| LLength | 37 mm |

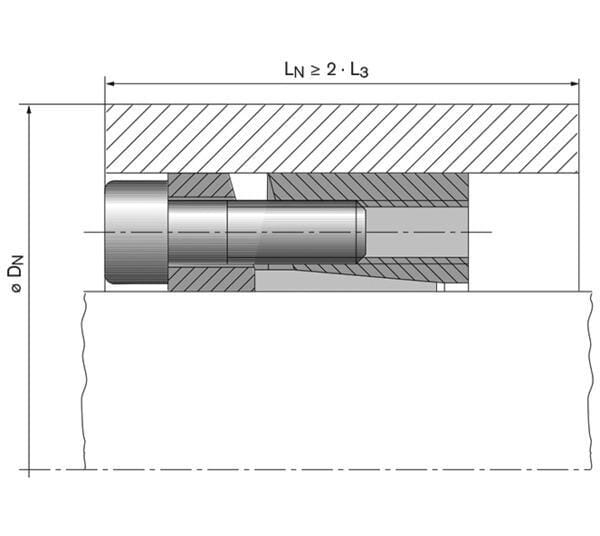

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 70 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 61 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 57 mm |
| Number of bolts | 4 |
| pN (Hub pressure at given TA) | 90 N/mm² |
| pW (Shaft pressure at given TA) | 290 N/mm² |
| TA (Locking torque) | 17 N·m |
| Tmax (Maximum transmissible torque | 340 N·m |
| T (Transmissible tork at given TA) | 300 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 305 g |
| Dimensions | 58 × 43 × 53 mm |
| Dangerous goods | No |
