£177.45
excl. VAT
£212.94 incl. VAT
£212.94
incl. VAT
£177.45 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

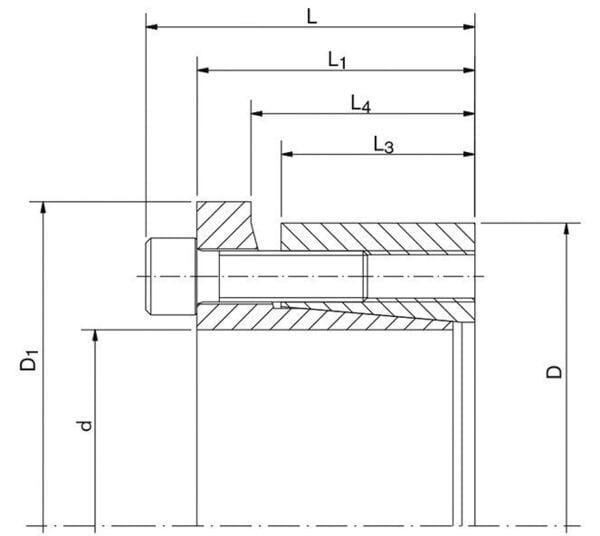

| D1Outside diameter hub | 73 mm |
|---|---|
| dDiameter shaft max. | 40 mm |
| Dg (Clamping thread) | M6 x 20 |
| DOutside diameter | 65 mm |
| F ax (Transmissible axial force) | 50 kN |
| L1Length L1 | 31 mm |
| L3Length L3 | 21.7 mm |
| L4 | 25.7 mm |
| LLength | 37 mm |

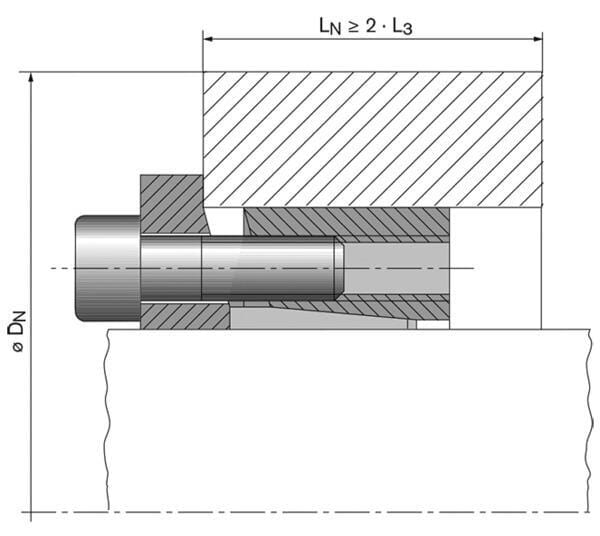

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 99 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 86 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 80 mm |
| Number of bolts | 10 |
| pN (Hub pressure at given TA) | 100 N/mm² |
| pW (Shaft pressure at given TA) | 220 N/mm² |
| TA (Locking torque) | 17 N·m |
| Tmax (Maximum transmissible torque | 1030 N·m |
| T (Transmissible tork at given TA) | 940 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 500 g |
| Dimensions | 85 × 85 × 45 mm |
| Dangerous goods | No |
