£191.75
excl. VAT
£230.10 incl. VAT
£230.10
incl. VAT
£191.75 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

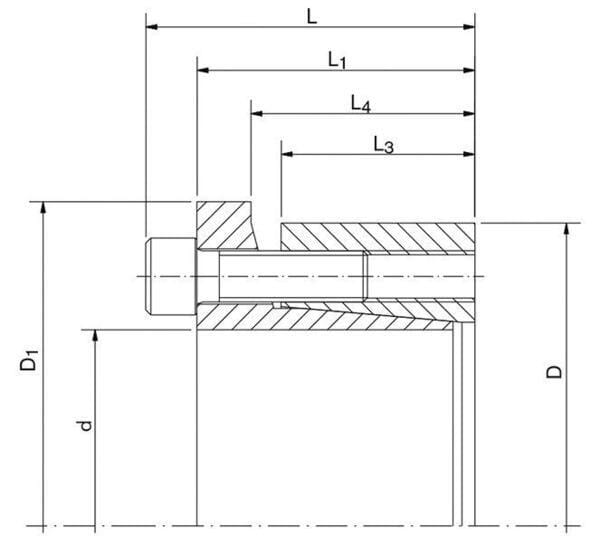

| D1Outside diameter hub | 88 mm |
|---|---|
| dDiameter shaft max. | 50 mm |
| Dg (Clamping thread) | M8 x 25 |
| DOutside diameter | 80 mm |
| F ax (Transmissible axial force) | 80 kN |
| L1Length L1 | 38 mm |
| L3Length L3 | 25.3 mm |
| L4 | 30.3 mm |
| LLength | 46 mm |

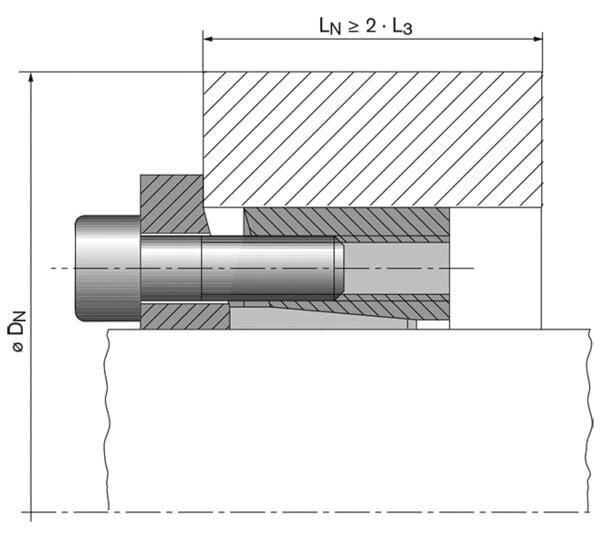

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 140 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 114 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 105 mm |
| Number of bolts | 9 |
| pN (Hub pressure at given TA) | 130 N/mm² |
| pW (Shaft pressure at given TA) | 260 N/mm² |
| TA (Locking torque) | 41 N·m |
| Tmax (Maximum transmissible torque | 2270 N·m |
| T (Transmissible tork at given TA) | 2070 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 896 g |
| Dimensions | 97 × 96 × 70 mm |
| Dangerous goods | No |
