£321.95
excl. VAT
£386.34 incl. VAT
£386.34
incl. VAT
£321.95 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

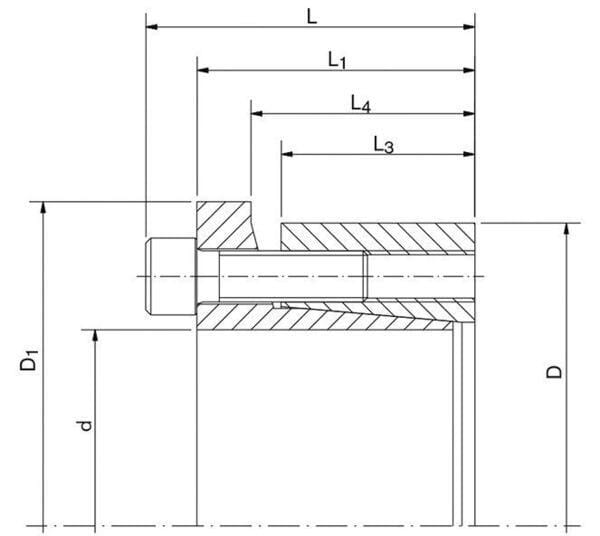

| D1Outside diameter hub | 120 mm |
|---|---|
| dDiameter shaft max. | 70 mm |
| Dg (Clamping thread) | M10 x 35 |
| DOutside diameter | 110 mm |
| F ax (Transmissible axial force) | 140 kN |
| L1Length L1 | 50 mm |
| L3Length L3 | 33.4 mm |
| L4 | 40.4 mm |
| LLength | 60 mm |

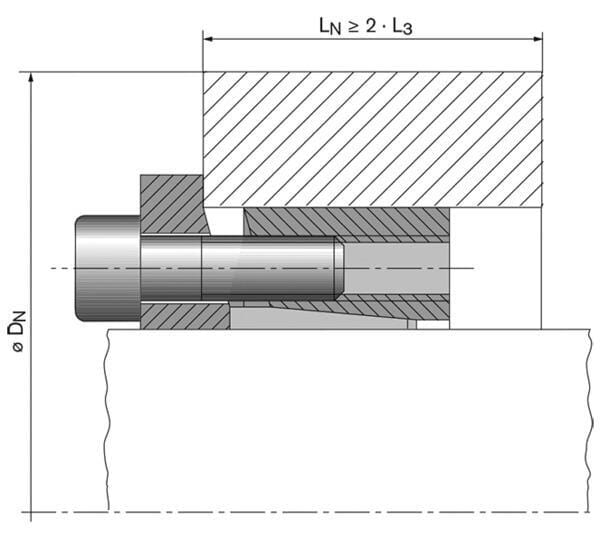

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 195 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 158 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 144 mm |
| Number of bolts | 10 |
| pN (Hub pressure at given TA) | 130 N/mm² |
| pW (Shaft pressure at given TA) | 240 N/mm² |
| TA (Locking torque) | 83 N·m |
| Tmax (Maximum transmissible torque | 5610 N·m |
| T (Transmissible tork at given TA) | 5100 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2120 g |
| Dimensions | 125 × 125 × 65 mm |
| Dangerous goods | No |
