£15.97
excl. VAT
£19.16 incl. VAT
£19.16
incl. VAT
£15.97 excl. VAT
In stock
Expected to ship on Friday 25 September
Product details
| Benefits | Little space required for installation |
|---|---|

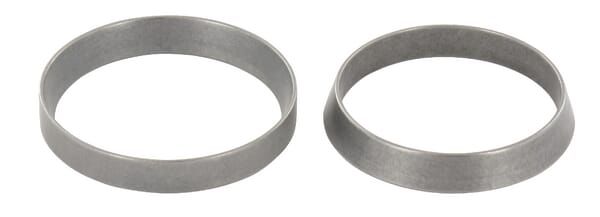

| Consists of | 2 conical rings |

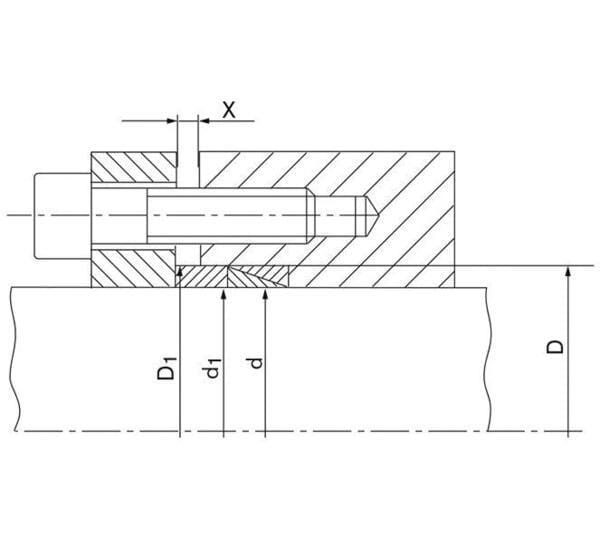

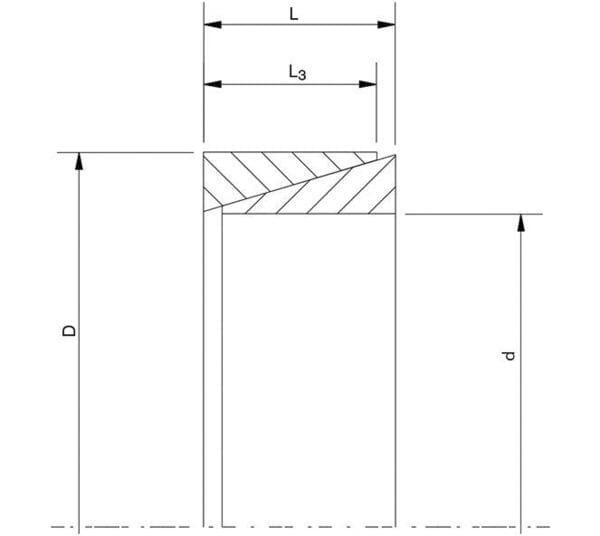

| d1Inside diameter | 24.2 mm |
| D1Outside diameter hub | 17.8 mm |
| dDiameter shaft max. | 24 mm |
| DOutside diameter | 28 mm |
| F ax (Transmissible axial force) | 4.8 kN |
| L3Length L3 | 5.3 mm |
| LLength | 6.3 mm |
| Technical info | Shaft tolerance to 38 mm: h6, Shaft tolerance over 38 mm: h8, Hub tolerance to 38 mm: h6, Hub tolerance over 38 mm: h8, Material roughness < 1 µm, Material: steel C45E |
| T (Transmissible tork at given TA) | 58 N·m |
| Unit | Each |
| XDistance center flange end connection | 3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8 g |
| Dimensions | 100 × 70 × 8 mm |
| Dangerous goods | No |
