£119.39
excl. VAT
£143.27 incl. VAT
£143.27
incl. VAT
£119.39 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

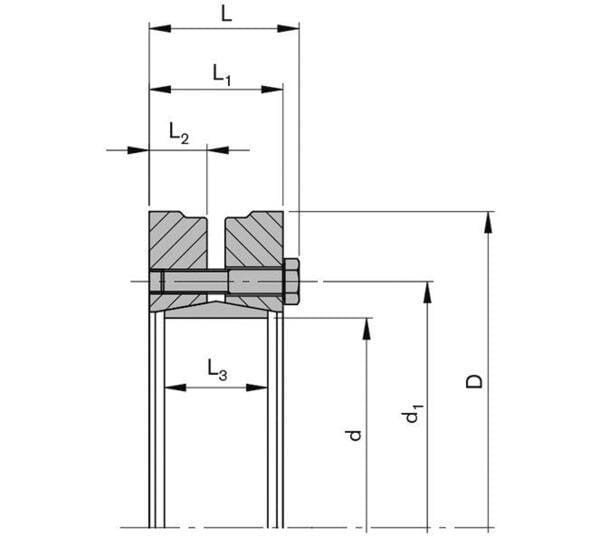

| d1Inside diameter | 63 mm |
|---|---|
| dDiameter shaft max. | 44 mm |
| Dg (Clamping thread) | M6 |
| DOutside diameter | 80 mm |

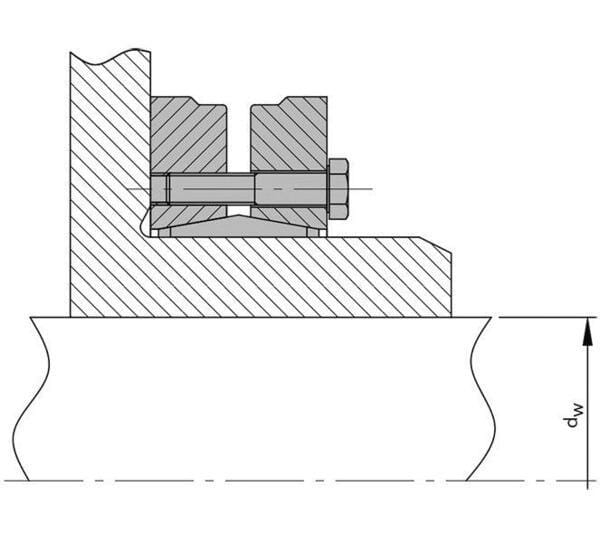

| dw solid shaft diameter | 32 mm |
| F ax (Transmissible axial force) | 63 kN |
| L1Length L1 | 26 mm |
| L2Length L2 | 11 mm |
| L3Length L3 | 20 mm |
| LLength | 30 mm |
| Number of bolts | 7 |
| pW (Shaft pressure at given TA) | 312 N/mm² |
| TA (Locking torque) | 12 N·m |
| Tmax (Maximum transmissible torque | 1000 N·m |
| T (Transmissible tork at given TA) | 800 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 648 g |
| Dimensions | 90 × 90 × 43 mm |
| Dangerous goods | No |
