£158.26
excl. VAT
£189.91 incl. VAT
£189.91
incl. VAT
£158.26 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

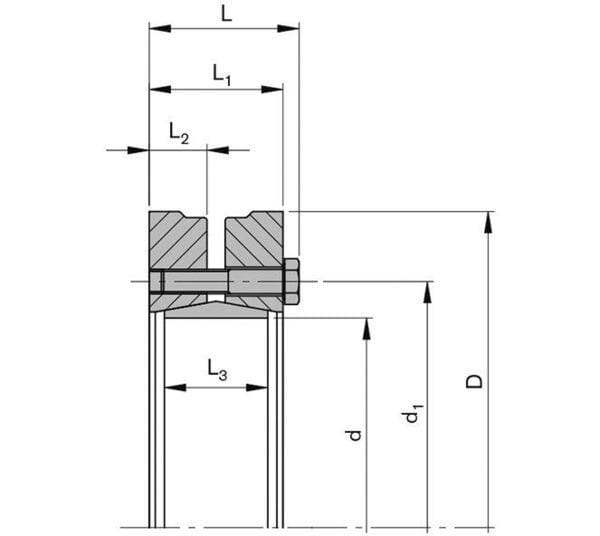

| d1Inside diameter | 86 mm |
|---|---|
| dDiameter shaft max. | 62 mm |
| Dg (Clamping thread) | M6 |
| DOutside diameter | 110 mm |

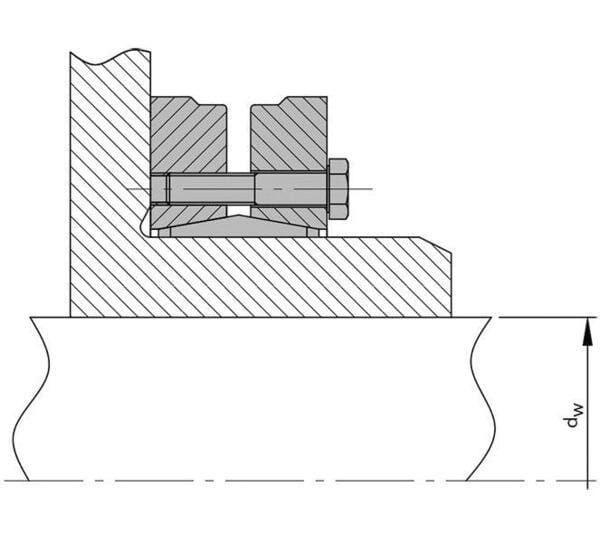

| dw solid shaft diameter | 48 mm |
| F ax (Transmissible axial force) | 126 kN |
| L1Length L1 | 30.5 mm |
| L2Length L2 | 13 mm |
| L3Length L3 | 23 mm |
| LLength | 34.5 mm |
| Number of bolts | 12 |
| pW (Shaft pressure at given TA) | 330 N/mm² |
| TA (Locking torque) | 12 N·m |
| Tmax (Maximum transmissible torque | 3000 N·m |
| T (Transmissible tork at given TA) | 2400 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1376 g |
| Dimensions | 127 × 125 × 46 mm |
| Dangerous goods | No |
