£136.59
excl. VAT
£163.91 incl. VAT
£163.91
incl. VAT
£136.59 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

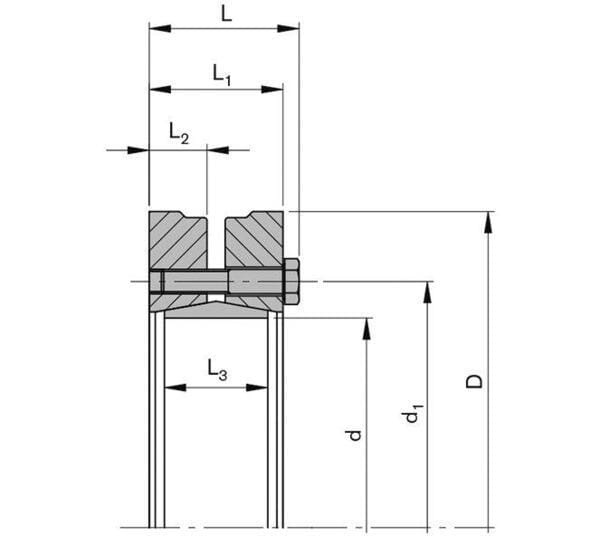

| d1Inside diameter | 70 mm |
|---|---|
| dDiameter shaft max. | 50 mm |
| Dg (Clamping thread) | M6 |
| DOutside diameter | 90 mm |

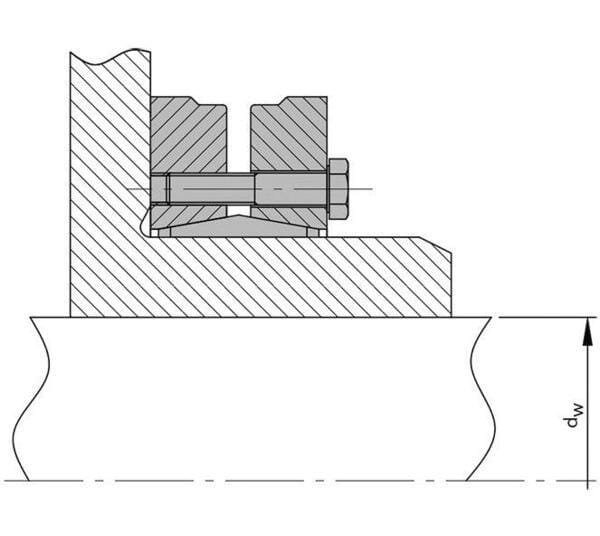

| dw solid shaft diameter | 38 mm |
| F ax (Transmissible axial force) | 89 kN |
| L1Length L1 | 27.5 mm |
| L2Length L2 | 12 mm |
| L3Length L3 | 22.5 mm |
| LLength | 31.5 mm |
| Number of bolts | 9 |
| pW (Shaft pressure at given TA) | 314 N/mm² |
| TA (Locking torque) | 12 N·m |
| Tmax (Maximum transmissible torque | 1650 N·m |
| T (Transmissible tork at given TA) | 1350 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 889 g |
| Dimensions | 120 × 114 × 48 mm |
| Dangerous goods | No |
