Roll over image to zoom in · Click to see full view
£19.38
excl. VAT
£23.26 incl. VAT
Pack of 2 · £9.69 each excl. VAT
£23.26
incl. VAT
£19.38 excl. VAT
Pack of 2 · £11.63 each incl. VAT
In stock
Expected to ship on Thursday 1 October
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
About this product

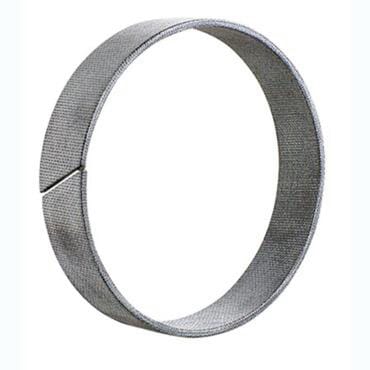

A synthetic piston guide ring designed for hydraulic cylinder piston guidance, type code 10E/GTP, to prevent metal-on-metal contact.
It features a 63 mm outside diameter, 58 mm inside diameter, 14.8 mm width and fits a 15 mm groove width. Constructed from cotton fabric reinforced with phenolic resin, cut at a 30° angle. Suitable for operating temperatures between -30 °C and 120 °C at maximum sliding speeds of 1 m/s.
Product details
| Angle | 30 ° |
|---|---|
| Groove width | 15 mm |
| Inside diameter | 58 mm |
| Long description | These 10E/GTP guide rings are made from cotton fabric reinforced with phenolic resin, providing a strong and reliable solution for guiding rods and pistons in hydraulic systems. They ensure proper alignment, absorb lateral forces, and protect against metal-to-metal contact. Their durable build safeguards both shaft and housing from wear, making these bearing rings ideal for mobile and heavy-duty applications with high surface pressures. |
| Material guide ring | Synthetic |
| Outside diameter | 63 mm |
| Piston-guiding | Yes |
| Product details | Guide rings for pistons and rods of hydraulic cylinders, Piston rod guidance, Prevents metallic contact, Suitable for high loads, Low friction, Material : Cotton fabric, reinforced with phenolic resin, Maximum sliding speed : 1 m/s, Temperature range : -30°C till 120°C, Cutting angle : 30° |
| Qty. Rounding | 2 |
| Rod-guiding | No |
| Type | Guide ring, Piston guiding |
| Type code | 10E/GTP |
| Unit | Each |
| Width | 14.8 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8 g |
| Dimensions | 62 × 62 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000031549
Sealtech Guide ring 60x55x15 - 10E/GTP 10EGTP1251500600A
£9.57 excl.
£11.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031534
Sealtech Rod wiper ASR 132x120x5.5/10mm 10DSRP120
£5.68 excl.
£6.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031662
Sealtech Guide strip coil 2.00x9.70mm 10GT2009755
£14.24 excl.
£17.09 incl.
In stock
Expected to ship on Thursday 1 October
BPA000234493

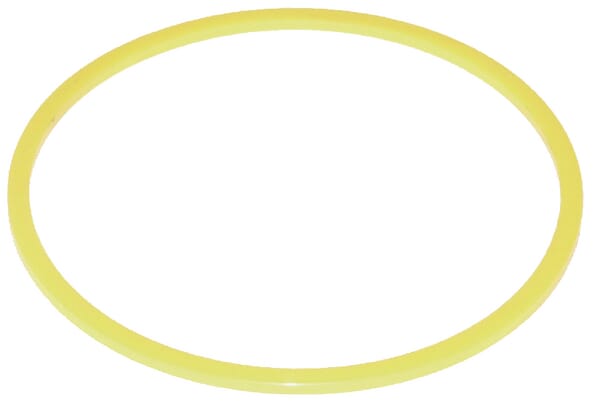

Sealtech Back-up ring BU 98.02x 3.53 BU241
