About this product

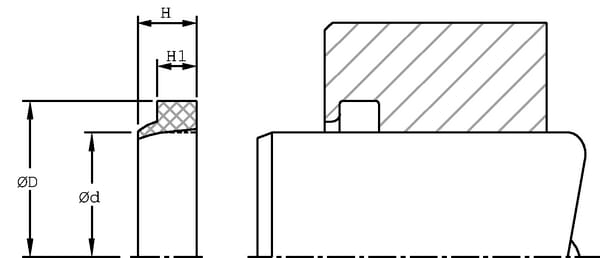

An ASR type rod wiper measuring 132 mm outer diameter by 120 mm inner diameter, with a groove width of 5.5 mm and total width of 10 mm, supplied as a single piece. The wiper is manufactured entirely from rubber with no metal reinforcement, offering flexibility and corrosion resistance. It is designed to remove dirt, moisture, and debris from the piston rod, preventing contamination inside the cylinder. The wiper operates at a maximum sliding speed of 1 m/s and functions across a temperature range of −30 °C to 100 °C. Installation is straightforward and can be performed in a closed chamber. The unit weighs approximately 19 g and carries the MPN 10DSRP120.
Product details
| dInner diameter | 120 mm |
|---|---|
| DOuter diameter | 132 mm |
| Groove width | 5.5 mm |
| Long description | The ASR scraper is made entirely of high-quality rubber, with no metal reinforcement. The Rod wiper effectively removes dirt, moisture, and debris from the piston rod, preventing contamination inside the cylinder. Its all-rubber construction offers flexibility, corrosion resistance, and easy installation. |
| Material wiper seal | Rubber |
| Max. sliding speed | 1 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | All rubber, Flexible, Installatin in closed chamber, Easy installation |
| Qty. Rounding | 3 |
| Total width | 10 mm |
| Type | Rod wiper |
| Type code | ASR |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19 g |
| Dimensions | 135 × 135 × 15 mm |
| Dangerous goods | No |
