Roll over image to zoom in · Click to see full view
£55.94
excl. VAT
£67.13 incl. VAT
£67.13
incl. VAT
£55.94 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.
Product details

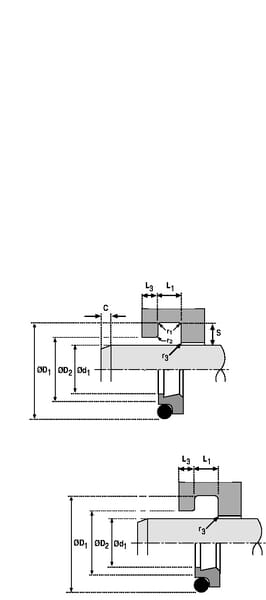

| d1Inner diameter | 70 mm |
|---|---|
| D1Outer diameter | 78.8 mm |
| Groove width | 6 mm |

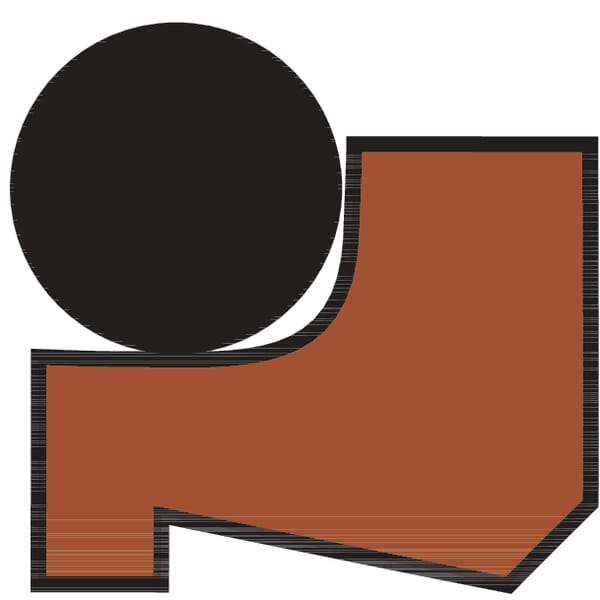

| Long description | The scrapers in the 335 series are double acting and fitted with an O-ring. The two lips work together to scrape dirt off the rod while simultaneously holding back the remaining oil on the rod and pumping it back into the cylinder. The O-ring provides the necessary force to press the scraper against the sliding surface and maintain pressure. |
| Material wiper seal | Teflon (PTFE), Nitrile rubber [NBR] |
| Max. sliding speed | 5 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | Low friction forces, High speeds up to 15m/s, Temperature range : -45°C to +200°C, Not suitable for strongly contaminated environments, Bronze alloy and carbon fibres, Suitable for short strokes and high frequencies, Double-acting, both dirt and oil film are removed |
| Total width | 6 mm |
| Type | Rod wiper |
| Type code | 335 |
| Unit | Each |
Logistics
| EAN | 8719607301169 |
|---|---|
| Unit of measure | EA |
| Weight | 20 g |
| Dimensions | 75 × 75 × 3 mm |
| Dangerous goods | No |
