About this product

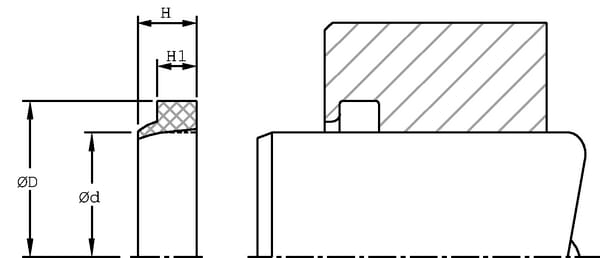

An ASR type all-rubber rod wiper seal designed for installation in a closed chamber.
It has a 50 mm inner diameter, 58 mm outer diameter, 5 mm groove width and 5 mm total width. It operates at sliding speeds up to 1 m/s and across a temperature range of -30 °C to 100 °C.
Rod wipers remove dirt, moisture and debris from piston rods to prevent internal cylinder contamination.
Product details
| dInner diameter | 50 mm |
|---|---|
| DOuter diameter | 58 mm |
| Groove width | 5 mm |
| Long description | The ASR scraper is made entirely of high-quality rubber, with no metal reinforcement. The Rod wiper effectively removes dirt, moisture, and debris from the piston rod, preventing contamination inside the cylinder. Its all-rubber construction offers flexibility, corrosion resistance, and easy installation. |
| Material wiper seal | Rubber |
| Max. sliding speed | 1 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | All rubber, Flexible, Installatin in closed chamber, Easy installation |
| Qty. Rounding | 4 |
| Total width | 5 mm |
| Type | Rod wiper |
| Type code | ASR |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 60 × 60 × 5 mm |
| Dangerous goods | No |
