Product details
| Angle | 30 ° |
|---|---|
| Groove width | 5.8 mm |
| Inside diameter | 58 mm |
| Long description | These 10E/GTP guide rings are made from cotton fabric reinforced with phenolic resin, providing a strong and reliable solution for guiding rods and pistons in hydraulic systems. They ensure proper alignment, absorb lateral forces, and protect against metal-to-metal contact. Their durable build safeguards both shaft and housing from wear, making these bearing rings ideal for mobile and heavy-duty applications with high surface pressures. |
| Material guide ring | Synthetic |
| Outside diameter | 63 mm |
| Piston-guiding | Yes |
| Product details | Guide rings for pistons and rods of hydraulic cylinders, Piston rod guidance, Prevents metallic contact, Suitable for high loads, Low friction, Material : Cotton fabric, reinforced with phenolic resin, Maximum sliding speed : 1 m/s, Temperature range : -30°C till 120°C, Cutting angle : 30° |
| Qty. Rounding | 3 |
| Rod-guiding | No |
| Type | Guide ring, Piston guiding |
| Type code | 10E/GTP |
| Unit | Each |
| Width | 5.6 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 62 × 62 × 5 mm |
| Dangerous goods | No |
You might also like

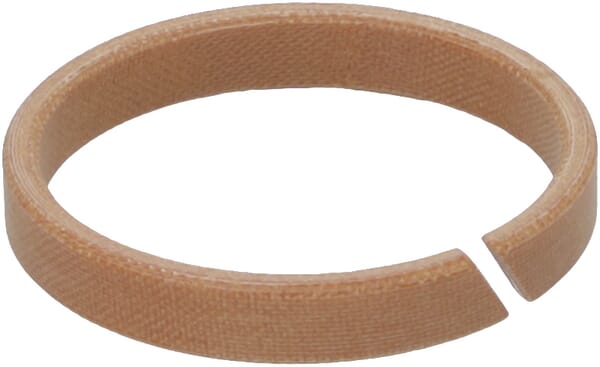

BPA000031559
Sealtech Guide ring 40x35x6,3 - 10E/GTP 10EGTP402563
£12.06 excl.
£14.47 incl.
Backorder available
Usually ships within 3–8 weeks

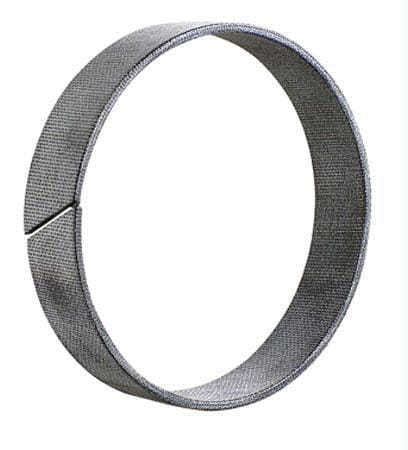

BPA000031673
Sealtech Guide ring 50x55x15 - 10I/GTP1 10IGTP1251500500A
£8.28 excl.
£9.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031532
Sealtech Piston seal 100x96x86x22,5x5,2mm 10DBM393339SI
£12.97 excl.
£15.56 incl.
In stock
Expected to ship on Wednesday 30 September

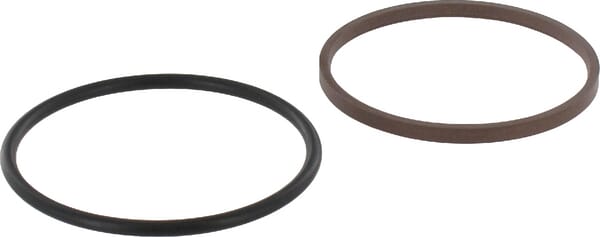

BPA000031668
Sealtech Rod seal 45x55,7x4,20mm 10IGRL0450B554470
£43.21 excl.
£51.85 incl.
In stock
Expected to ship on Thursday 1 October

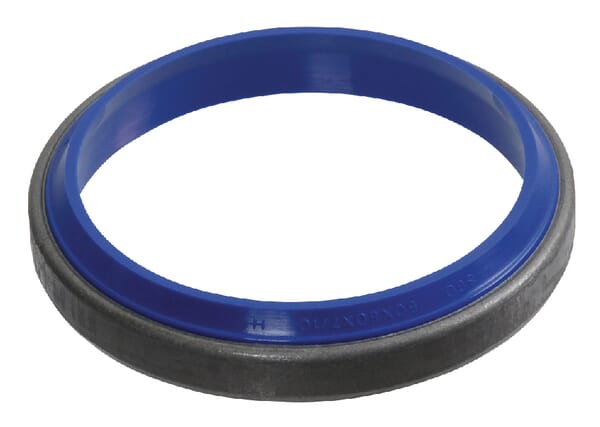

BPA000031733
