Product details
| Bearing type | Roller |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 200 kg |
| EN Standard | 12532 |
| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -30 °C |

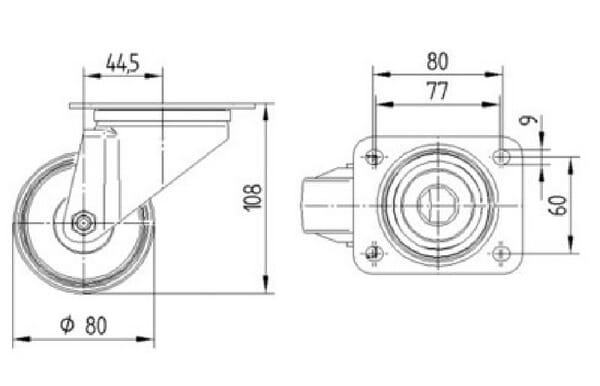

| Mounting holes diameter | 9 mm |
| Mounting holes distance | 60-60 mm |
| Mounting holes distance - length side | 77-80 mm |
| Offset | 44.5 mm |
| Plate length | 105 mm |
| Plate width | 85 mm |
| Technical info | Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Polyamide, roller bearing |
| Total height | 108 mm |
| Unit | Each |
| Weight | 0.761 kg |
| Wheel diameter | 80 mm |
| Wheel material | Polyamide |
| Wheels type | Swivel wheel |
| Wheel width | 34 mm |
| With break | No |
Logistics
| EAN | 4031582416701 |
|---|---|
| Unit of measure | EA |
| Weight | 662 g |
| Dimensions | 155 × 106 × 106 mm |
| Dangerous goods | No |
You might also like
BPA000342048
Tente Solid wheel 250mm bore diameter 20 PVR2505020
£21.10 excl.
£25.32 incl.
In stock
Expected to ship on Friday 18 September
BPA000190608

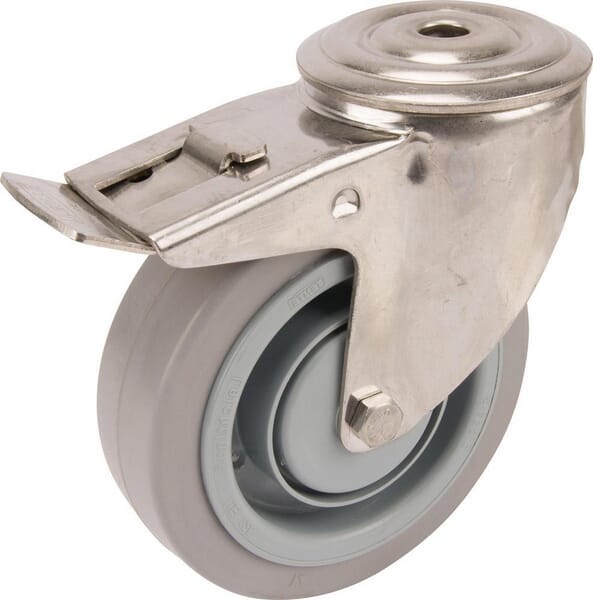

Tente Caster wheel swivel wheel: diameter 125x40mm, with brake, stainless steel single bolt hole Load: 150kg, 8477UFC125P3013
