£16.57
excl. VAT
£19.88 incl. VAT
£19.88
incl. VAT
£16.57 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Dynamic load capacity | 75 kg |
| EN Standard | 12530 |

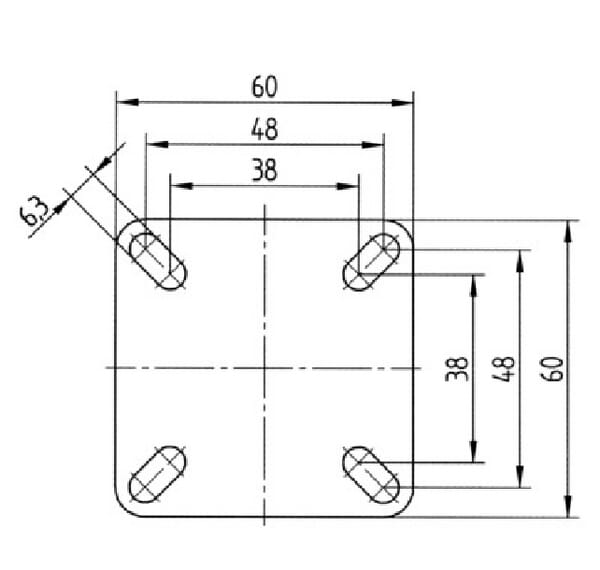

| Fitting type | Plate fitting |
| Max working temperature | 60 °C |
| Min working temperature | -20 °C |
| Mounting holes diameter | 6.3 mm |
| Mounting holes distance | 38-48 mm |
| Mounting holes distance - length side | 38-48 mm |
| Offset | 24 mm |
| Plate length | 60 mm |
| Plate width | 60 mm |

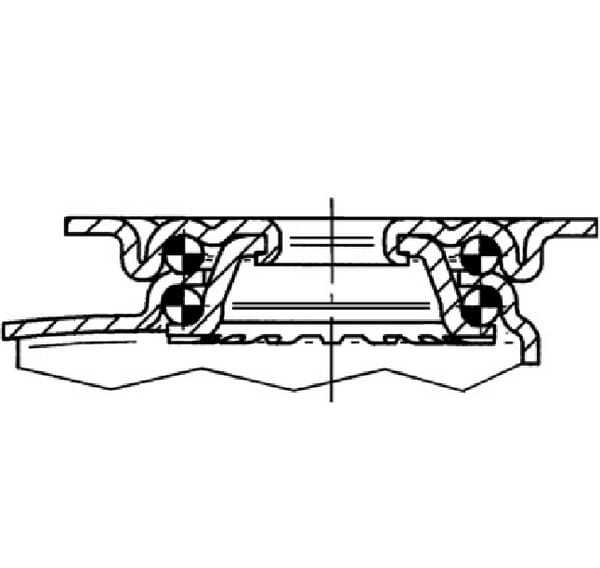

| Technical info | Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polypropylene, Tread: TENTEprene (thermoplastic rubber), grey non-marking, precision ball bearing , with threadguards |
| Total height | 100 mm |
| Unit | Each |
| Weight | 0.343 kg |
| Wheel diameter | 75 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 25 mm |
| With break | Yes |
Logistics
| EAN | 4031582050431 |
|---|---|
| Unit of measure | EA |
| Weight | 336 g |
| Dimensions | 140 × 135 × 105 mm |
| Dangerous goods | No |
You might also like
BPA000190602
Tente Caster wheel swivel, polyurethane wheel: diameter 125x32mm, with brake, stainless steel single bolt hole Load: 150kg, 8477UAD125P3013
£59.31 excl.
£71.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000344340
Tente Wheel 160 mm PIR160402058
£22.34 excl.
£26.81 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000092103
Tente Caster wheel swivel, rubber wheel: diameter 100x30mm, with brake, plate fitting: 105x85mm Load: 70kg, 3477DVJ100P62
£28.98 excl.
£34.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000092109
Tente Caster wheel swivel, rubber wheel: diameter 100x40mm, with brake, plate fitting: 105x85mm Load: 200kg, 3477IEP100P62
£27.97 excl.
£33.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000381272

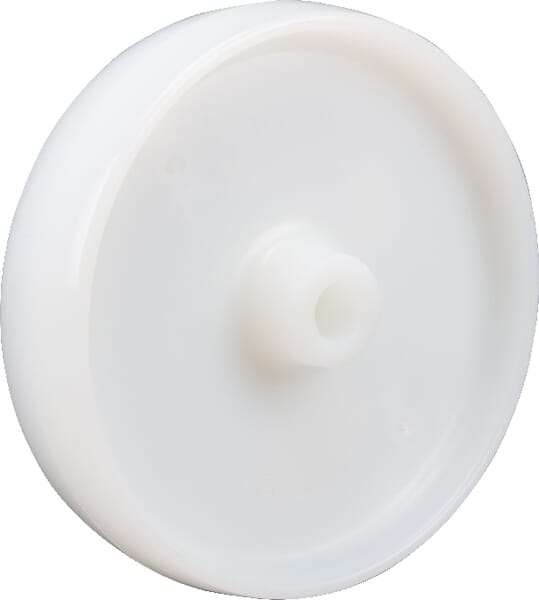

Tente Wheel 200 mm UOO200502058
