Voss Angled screw connection WES6S14NPT

Name: Angled screw connection
Brand: Voss
SKU: BPA000402382
Price: 7.87 GBP
Availability: BackOrder

£6.56 excl. VAT

£7.87 incl. VAT

£6.56 excl. VAT

Out of stock — Backorder available

Usually ships within 3–8 weeks.

Policy information

Returns

14-day returns with a free prepaid label. Refunds within 5 working days.

Returns policy

Warranty

12 months from delivery — repair, replacement or refund.

Warranty terms

Delivery

Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.

Delivery information

Secure payment

3D Secure card checkout — we never store your card details.

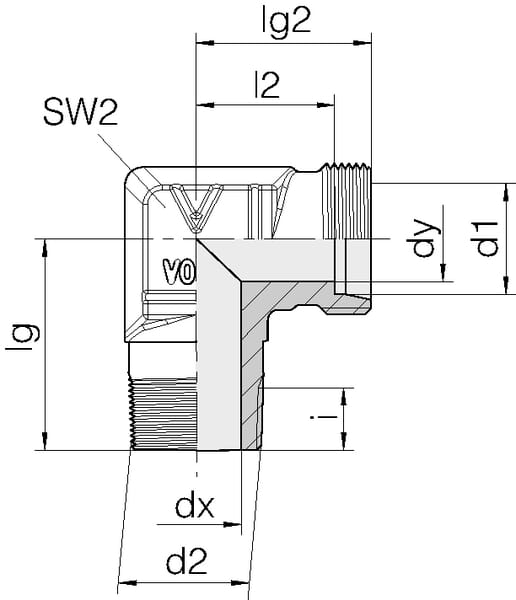

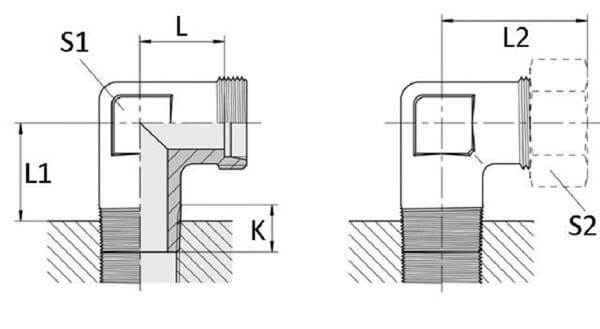

Product details

Body height	14 mm
Connection 1, thread diameter	1/4 Inch
Connection 1, thread type	BSPT
Connection 2, centre to end distance	26 mm
Connection 2, diameter	6 mm
Connection 2, thread diameter	M14
Connection 2, thread pitch	1.50 mm
Connection 2, thread type	Metric
Connection 2, type - male/female	Female
Connection 2, wrench/spanner size	14.0 mm
Connection no 1 center to end distance	16 mm
Connection no 1 diameter	6 mm
DIN standard	2401, 2353, 228, 3852
Includes	without separate nut and cutting ring
Inside diameter	4 mm
ISO standard	228
L1Connection no 1 thread length	15.1 mm
Max. tightening torque	35 N·m
Max working pressure	630 BAR
S2Connection no 1 wrench size	17.0 mm
Series connection 1	6S
Shape	Elbow 90°
Surface treatment	Galvanised
Unit	Each

Compatible accessories

Parts and components that work with this product.

MV6S

Voss Swivel nut 6S MV6S

£0.52 excl. £0.62 incl.

SV2S06LS

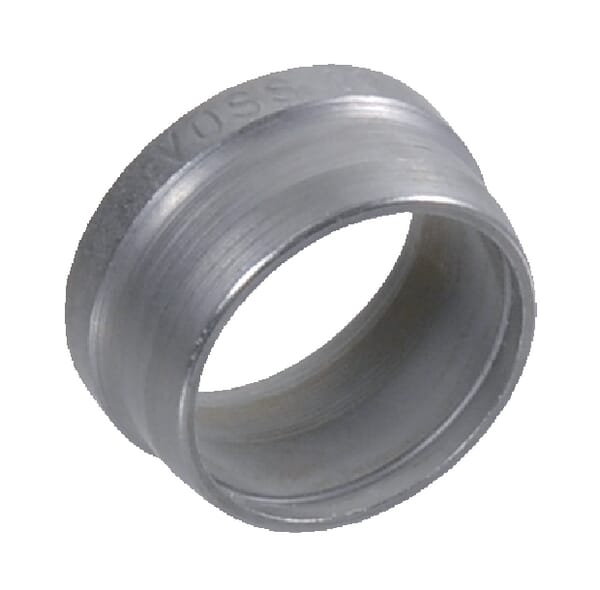

Voss Cutting ring 6LS SV2S06LS

£0.48 excl. £0.58 incl.

Logistics

EAN	—
Unit of measure	EA
Weight	59 g
Dimensions	33 × 31 × 14 mm
Dangerous goods	No
