Roll over image to zoom in · Click to see full view
£13.46
excl. VAT
£16.15 incl. VAT
£16.15
incl. VAT
£13.46 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Policy information
Delivery
Shipped on a 24–48 hour service from the expected ship date, unless stated otherwise. Next day delivery is available on selected items. Free over £120.00 incl. VAT, otherwise £4.80.
Delivery informationSecure payment
3D Secure card checkout — we never store your card details.

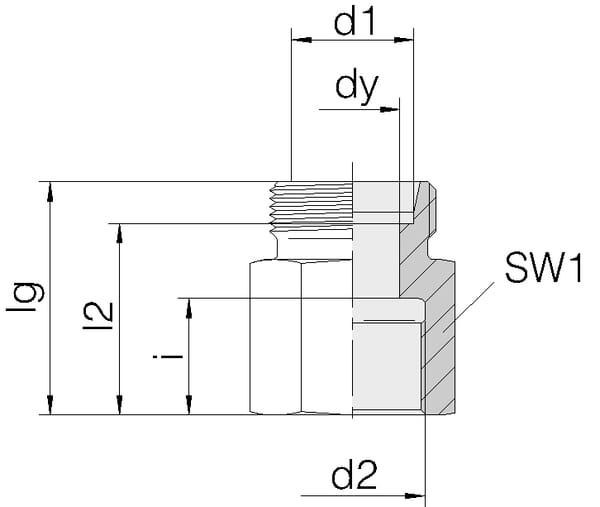

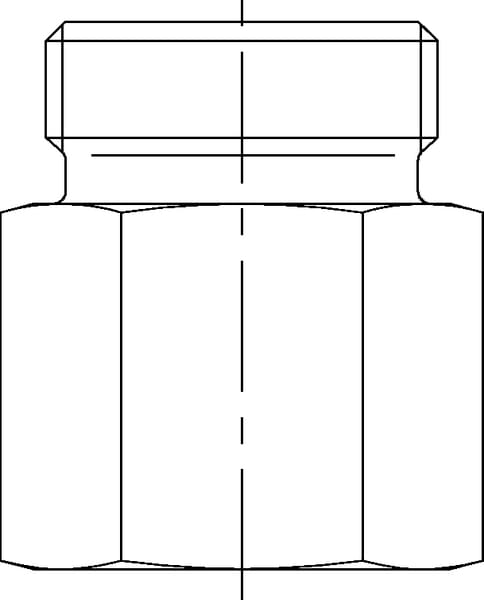

Product details
| Body height | 37 mm |
|---|---|
| Connection 1, thread diameter | M26 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M22 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 32.0 mm |
| Connection no 1 diameter | 15 mm |
| Connection no 1 length | 19 mm |
| Inside diameter | 15.88 mm |
| KConnection no 1 thread length | 19 mm |
| L1Connection no 1 center to end distance | 46 mm |
| L2Connection 2, centre to end distance | 29.5 mm |
| Max working pressure | 315 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 30.0 mm |
| Series connection 1 | 18L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 109 g |
| Dimensions | 38 × 35 × 33 mm |
| Dangerous goods | No |
You might also like
BPA000288157
Voss Cut ring coupling 25S M36x2,0 - BSP 1 1/4" - Male GES25SR114
£46.95 excl.
£56.34 incl.
In stock
Expected to ship on Monday 5 October
BPA000287363
Voss BulkHead Coupling 22L GSV22L
£24.46 excl.
£29.35 incl.
In stock
Expected to ship on Monday 5 October
BPA000288044
Voss Cut ring coupling 16S M24x1,5 - BSP 3/4" - Male GES16SR34
£7.01 excl.
£8.41 incl.
In stock
Expected to ship on Monday 5 October
BPA000380900

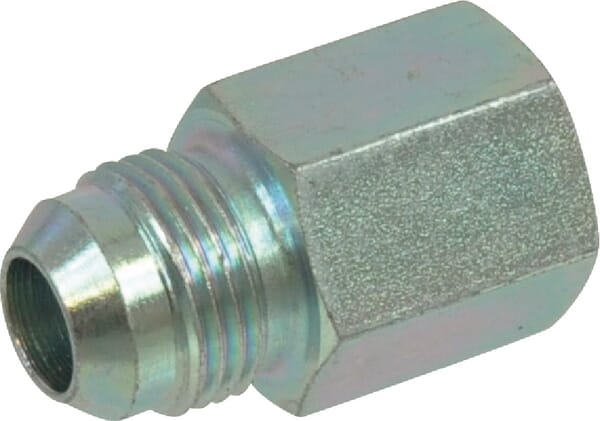

Voss Adaptor with hex, 3/4 JIC x 3/8 BSP UFA12MJ06FG
