Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 12 mm |
| Connection 2, length | 51.5 mm |
| Connection 2, thread diameter | M20 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 length | 35.5 mm |
| D2Series connection 1 | 12S |
| DIN standard | 2401 |
| Max working pressure | 420 BAR |
| Product details | Pre-assembled with O-ring, Multiple corrosion resistance |
| Pros | Assembly with end stop, Reduced risk of leakage |
| S2Connection no 1 wrench size | 36.0 mm |
| Seal material | FKM |
| Shape | Straight |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 215 g |
| Dimensions | 57 × 40 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000287328
Voss Cutting ring coupling bulkhead 18L GSS18L
£13.92 excl.
£16.70 incl.
In stock
Expected to ship on Friday 2 October
BPA000288496
Voss Coupling 15L M18 GEV15LM18WD
£4.71 excl.
£5.65 incl.
In stock
Expected to ship on Friday 2 October
BPA000287839
Voss Coupling 10S R1/4 GES10SR14WD
£4.52 excl.
£5.42 incl.
In stock
Expected to ship on Friday 2 October
BPA000287957
Voss Adaptor 14S 3/4 UNF GES14S34UNF
£18.55 excl.
£22.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000316822

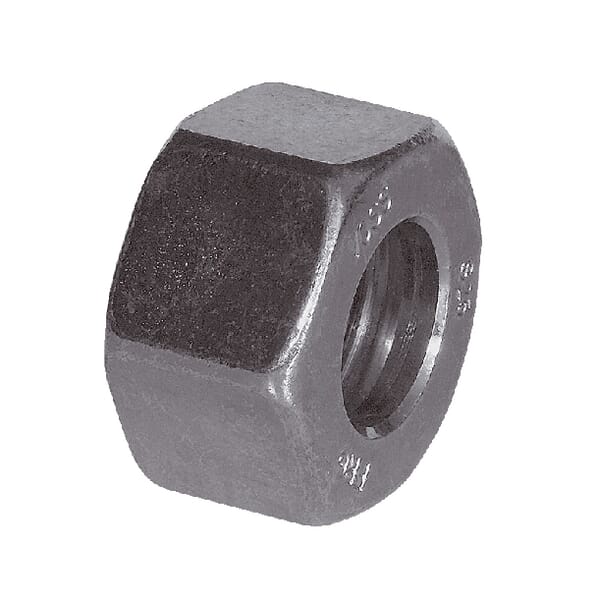

Voss Swivel nut 18L MV18L
