Product details
| Connection 1, thread diameter | M10 |
|---|---|
| Connection 1, thread pitch | 1.00 mm |
| Connection 1, thread type | NPT |
| Connection 1, type | Seal ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 14.0 mm |
| Connection no 1 diameter | 6 mm |
| DIN standard | 2401 |
| Inside diameter | 2.5 mm |

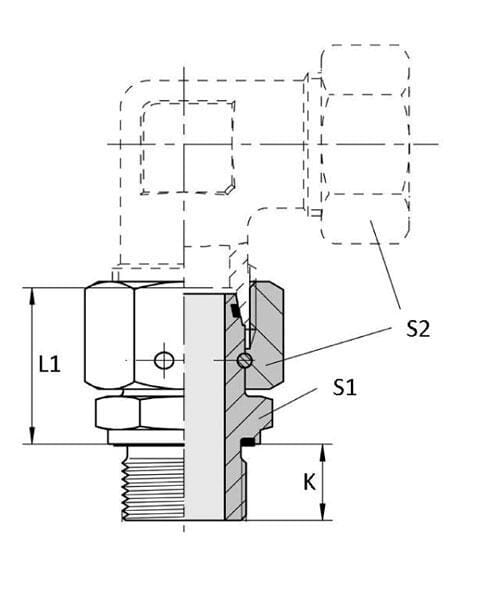

| KConnection no 1 length | 8 mm |
| L1Connection 2, centre to end distance | 24.5 mm |
| Max. tightening torque | 15 N·m |
| Max working pressure | 500 BAR |
| Product details | WD = Pre-assembled with flexible seal, Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 14.0 mm |
| Seal material | Nitrile rubber [NBR] |
| Series connection 1 | 6L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 26 g |
| Dimensions | 33 × 19 × 17 mm |
| Dangerous goods | No |
