£13.12
excl. VAT
£15.74 incl. VAT
£15.74
incl. VAT
£13.12 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Body height | 48 mm |
|---|---|
| Connection 1, thread diameter | M45 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1-1/4 Inch |
| Connection 2, threads per inch | 11 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 diameter | 35 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Inside diameter | 30 mm |
| ISO standard | 228 |
| KConnection no 1 thread length | 20 mm |
| L1Connection 2, centre to end distance | 17.5 mm |
| L2Connection no 1 center to end distance | 39 mm |
| Max. tightening torque | 670 N·m |
| Max working pressure | 200 BAR |
| Product details | Direct connection with a metric hose gland or pre-mounted coupling, Multiple corrosion resistance |
| Pros | Reduced risk of leakage |
| S1Connection no 1 wrench size | 50.0 mm |
| Series connection 1 | 35L |
| Shape | Straight |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 276 g |
| Dimensions | 56 × 56 × 56 mm |
| Dangerous goods | No |
You might also like
BPA000348363

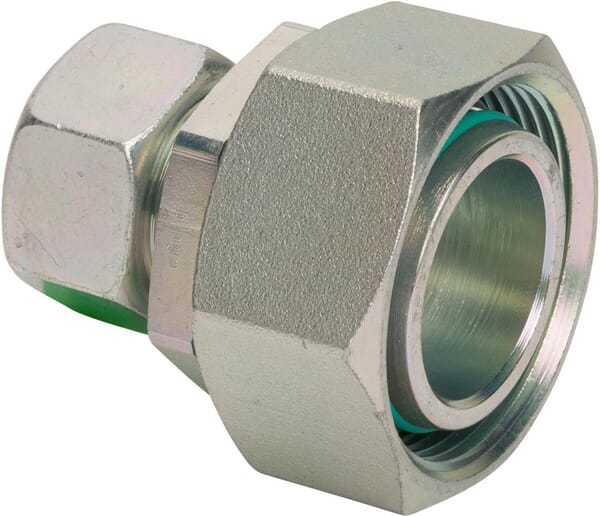

Voss Coupling 35L 18L REDVD3518L
£34.41 excl.
£41.29 incl.
In stock
Expected to ship on Friday 18 September
BPA000288622
Voss Coupling 8LL 1/8NPT GEV8LL18NPT
£3.22 excl.
£3.86 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288445

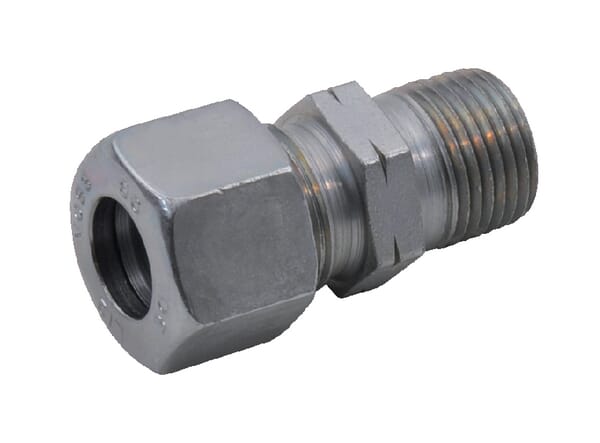

Voss Coupling 12L 1/2NPT GEV12L12NPT
£5.10 excl.
£6.12 incl.
In stock
Expected to ship on Monday 21 September
BPA000288523

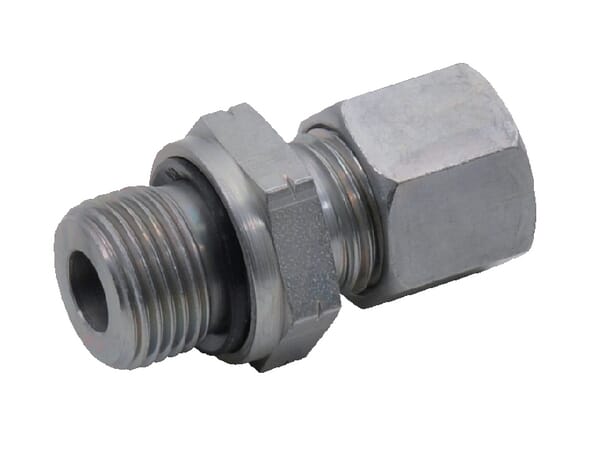

Voss Coupling 18L R1/2 GEV18LR12WD
£6.40 excl.
£7.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000258537

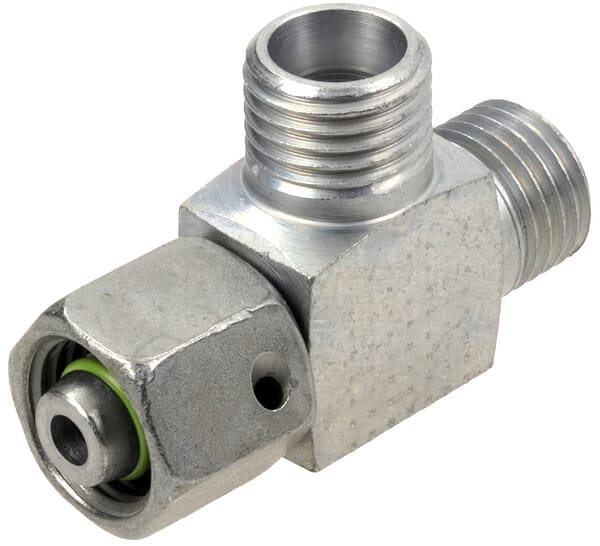

Voss Swivel T piece union F-M-M 6L ELSD6L
£11.66 excl.
£13.99 incl.
In stock
Expected to ship on Friday 18 September
BPA000402411

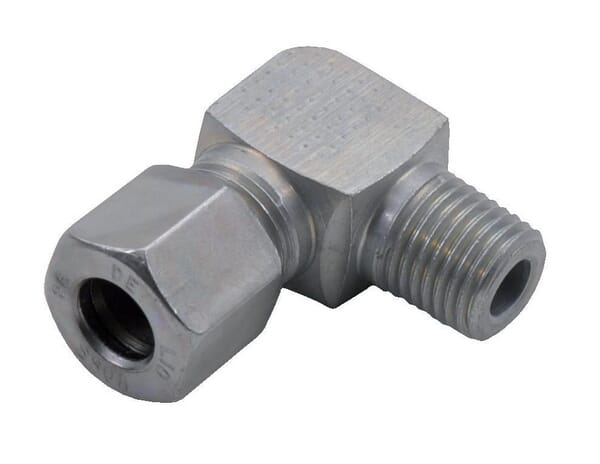

Voss Elbow Coupling 10S M16 WEV10SM16
