£10.13
excl. VAT
£12.16 incl. VAT
£12.16
incl. VAT
£10.13 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection 1, thread diameter | 3/8 Inch |
|---|---|
| Connection 1, thread type | BSP |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 1/8 Inch |
| Connection 2, thread length | 17 mm |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 24.0 mm |
| Connection no 1 wrench size | 24.0 mm |
| DIN standard | 228 |

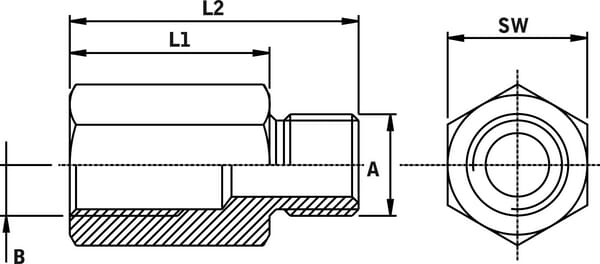

| L1Connection no 1 length | 17 mm |
| L2Total length | 33.5 mm |
| Material | Steel |
| Max. tightening torque | 20 N·m |
| Max working pressure | 630 BAR |
| Product details | Viton seal available on request |
| Seal material | Nitrile rubber [NBR] |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| SWConnection no 1 hex size | 13.9 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 68 g |
| Dimensions | 32 × 27 × 24 mm |
| Dangerous goods | No |
You might also like

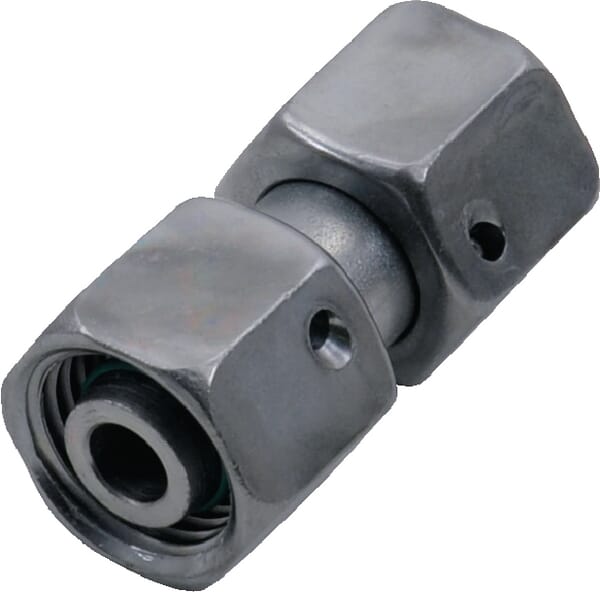

BPA000360257
Voss Coupling 22L SNV22L
£21.15 excl.
£25.38 incl.
In stock
Expected to ship on Tuesday 22 September

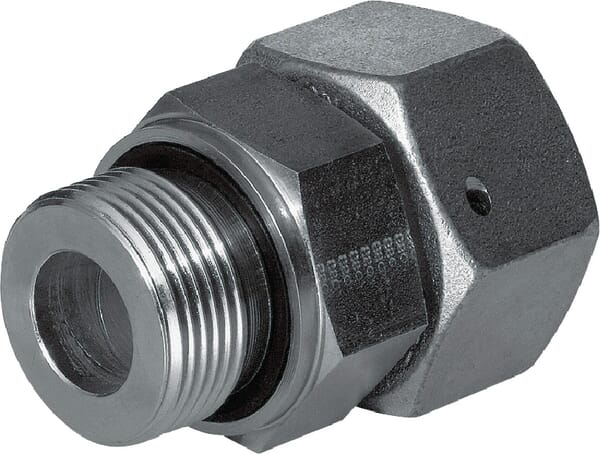

BPA000258248
Voss Coupling 22L M26 EGESD22LM26WD
£14.36 excl.
£17.23 incl.
In stock
Expected to ship on Tuesday 22 September

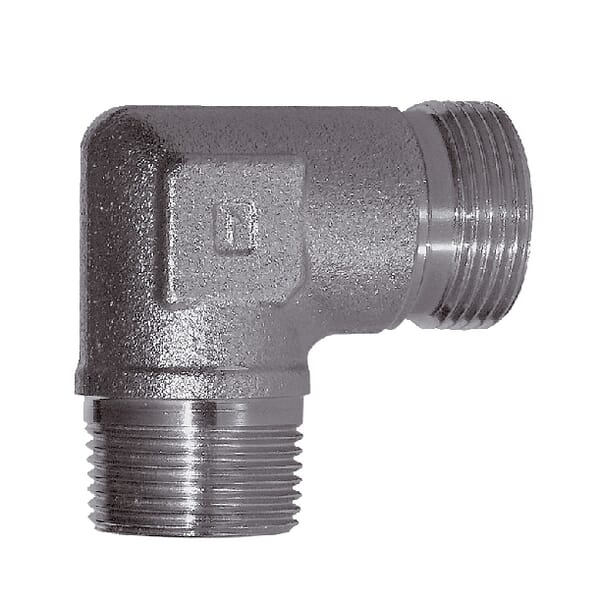

BPA000402333
Voss Angled screw connection WES14SM20
£15.69 excl.
£18.83 incl.
In stock
Expected to ship on Tuesday 22 September

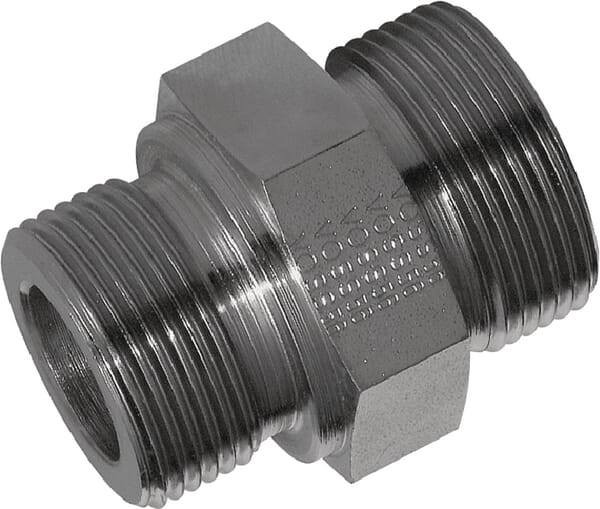

BPA000287906
Voss Cut ring coupling 12L M18x1,5 - BSP 3/8" - Male GES12LR38
£2.04 excl.
£2.45 incl.
In stock
Expected to ship on Tuesday 22 September

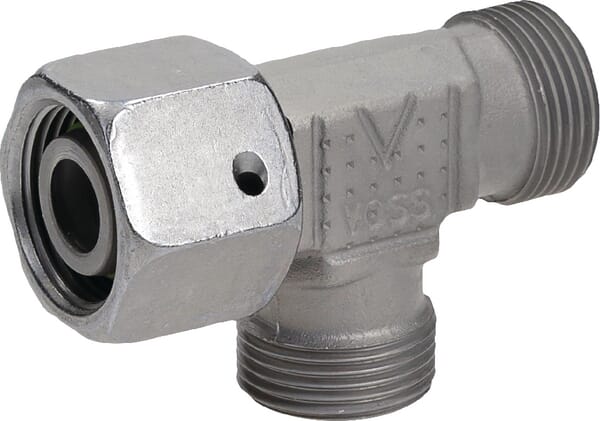

BPA000258513
Voss Swivel T piece union F-M-M 15L ELSD15L
£13.49 excl.
£16.19 incl.
In stock
Expected to ship on Tuesday 22 September

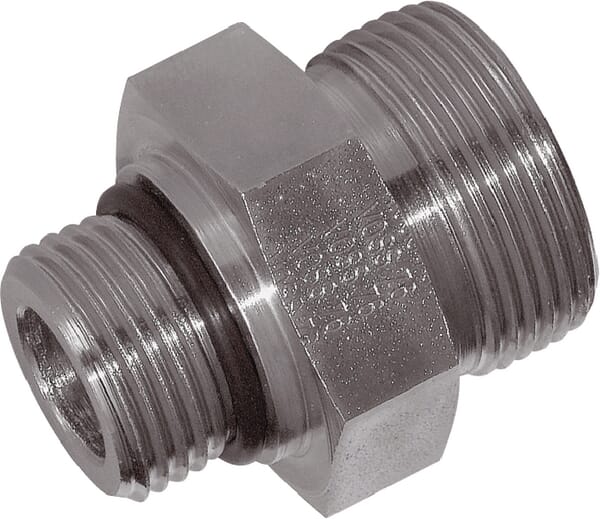

BPA000287765
