£123.92
excl. VAT
£148.70 incl. VAT
£148.70
incl. VAT
£123.92 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 29 September

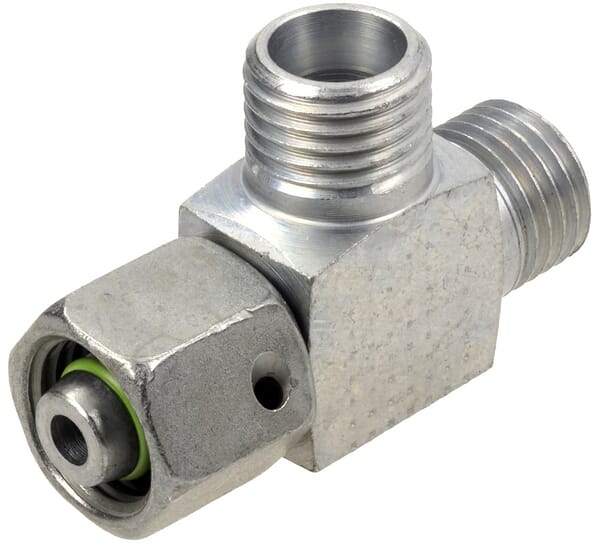

Product details
| Connection 1, thread diameter | M52 |
|---|---|
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Thread |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection 3, length | 89 |
| Connection 3, thread diameter | M52 |
| Connection 3, thread pitch | 2.00 mm |
| Connection 3, thread type | Metric |
| Connection 3, type | Swivel nut |
| Connection 3, type - male/female | Female |
| DIN standard | 2401, 2353, 3865 |
| Includes | pre-assembled gland |
| Inside diameter | 32.33 mm, 30 mm |

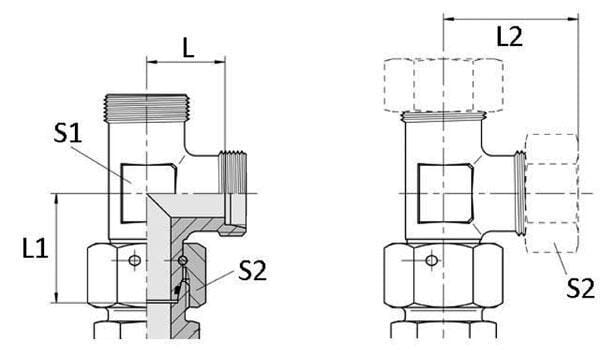

| L1Connection 2, centre to end distance | 63 mm |
| L2Connection no 1 center to end distance | 72 mm |
| LConnection 3 centre to end distance | 41 mm |
| Max working pressure | 400 BAR |
| Pipe diameter | 38 mm |
| Product details | Optimal cutting ring connection and functionality, Multiple corrosion resistance |
| Pros | 2S cutting ring |
| S1Body height | 50 mm |
| S2Connection no 1 wrench size | 60.0 mm |
| Sealing ring inside diameter | 35 mm |
| Sealing ring thickness | 2.5 mm |
| Seal material | Nitrile rubber [NBR] |
| Series | S |
| Shape | Tee (T) |
| Surface treatment | Nickel, Zinc |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1515 g |
| Dimensions | 121 × 80 × 60 mm |
| Dangerous goods | No |
You might also like

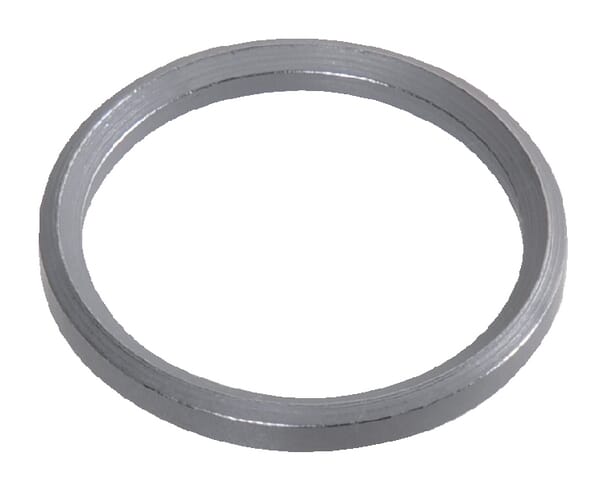

BPA000355273
Voss RSWV seal ring metal 11/2 BSP RSWV9VDKR112
£6.88 excl.
£8.26 incl.
Backorder available
Usually ships within 3–8 weeks

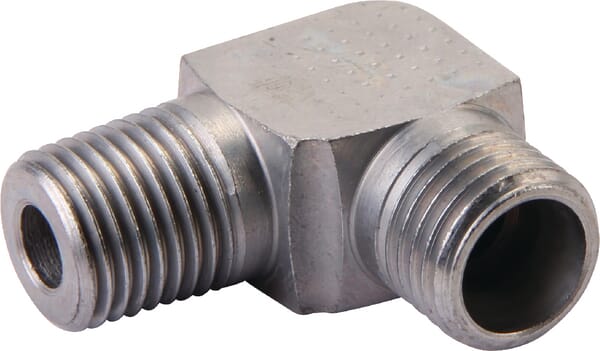

BPA000402391
Voss Angled screw connection WES8LL18NPT
£7.24 excl.
£8.69 incl.
In stock
Expected to ship on Tuesday 29 September

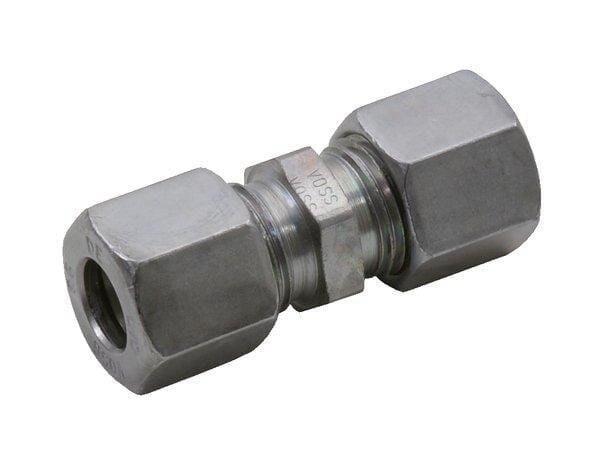

BPA000287508
Voss Coupling 42L GV42L
£39.91 excl.
£47.89 incl.
In stock
Expected to ship on Tuesday 29 September
BPA000348250
Voss Coupling 28L 22L REDSD2822L
£18.93 excl.
£22.72 incl.
In stock
Expected to ship on Tuesday 29 September

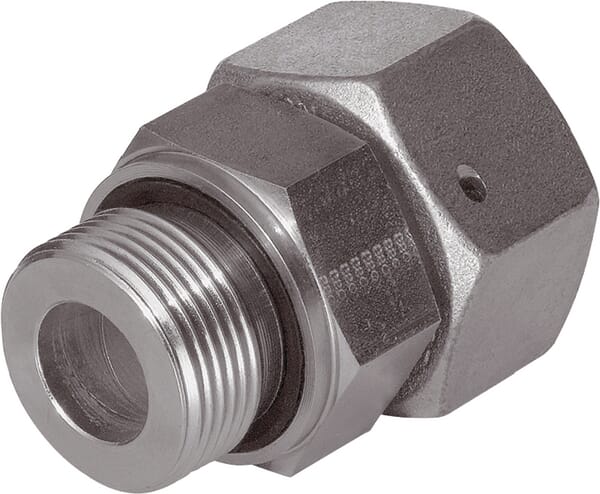

BPA000258269
