Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Torque retention, Smooth transition, Wide range of applications |
| Clutch type code | K96/4 |
| Connection locking type | Collar lock |
| Cross cap diameter | 32 mm |
| Cross length | 86 mm |
| Details | No interruption of power transmission, Absorb peak loads for a short time, Max. torque adjustable via circlip |

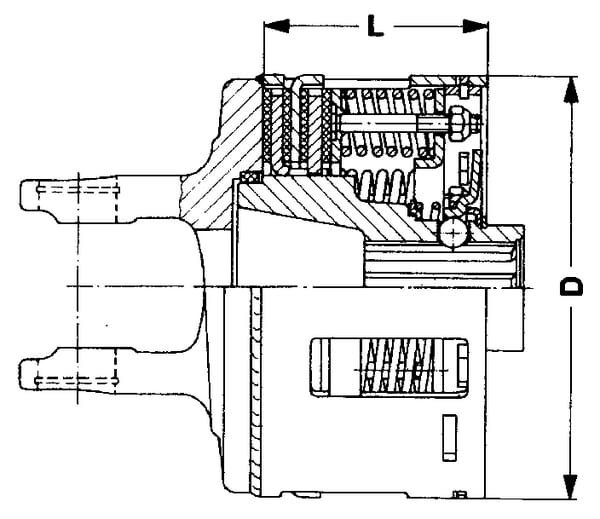

| DOutside diameter | 170 mm |
| Inside connection diamter inch and splines | 1.3/8-6 |
| LClutch part length | 90 mm |
| Long description | Friction clutches with spring pack K96 / 4 cpl. 2400, 2500 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1200 N·m |
| Original number equivalent | 1181659 |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Adjustable, Suitable as a starting clutch |
| Shaft size code | W2400 |
| Suitable for machine/vehicle brand | Freudendahl |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | 8435194020046 |
|---|---|
| Unit of measure | EA |
| Weight | 10580 g |
| Dimensions | 260 × 215 × 210 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000095368
Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, W2580 3683110M
£297.98 excl.
£357.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000098740
Walterscheid Cross journal diameter 36x89mm / diameter 32x106mm 2580 / P580 3606134
£151.72 excl.
£182.06 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084365

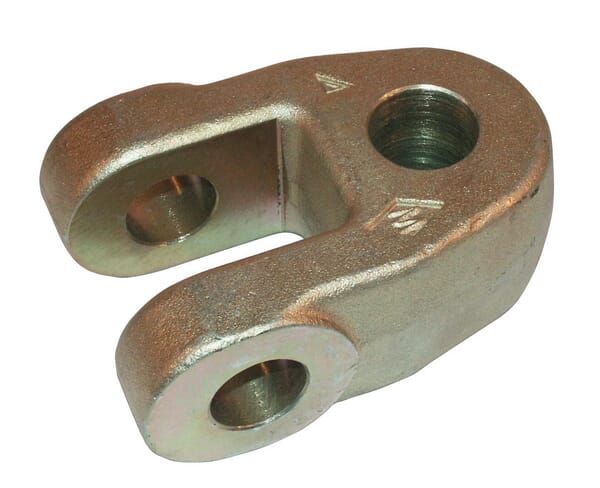

Walterscheid Fork head 22.2x46.5mm 306401
