£657.21
excl. VAT
£788.65 incl. VAT
£788.65
incl. VAT
£657.21 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mowers, Rotary harrows, Pick-up |
|---|---|
| Benefits | Small installation space, Torque retention, Smooth transition |
| Clutch type code | K92E |
| Connection locking type | Automatic collar lock |
| Cross cap diameter | 27 mm |
| Cross length | 84 mm |
| Details | Compact construction, -No interruption of power transmission, Absorb peak loads for a short time |
| Inside connection diamter inch and splines | 1.3/8-6 |
| Max. rotation speed | 1000 r/min |
| Max static torque | 1000 N·m |
| Original number equivalent | 1106559 |
| Outside diameter | 170 mm |
| Properties | Independent of direction of rotation, Power transmission via friction discs, Not adjustable, Suitable as a starting clutch |
| Shaft size code | W2300 |
| Suitable for machine/vehicle brand | n/a |
| Technical info | Observe maintenance instructions |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6300 g |
| Dimensions | 170 × 160 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000226123
Walterscheid Agraset QR pin AG101
£16.12 excl.
£19.34 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000095361

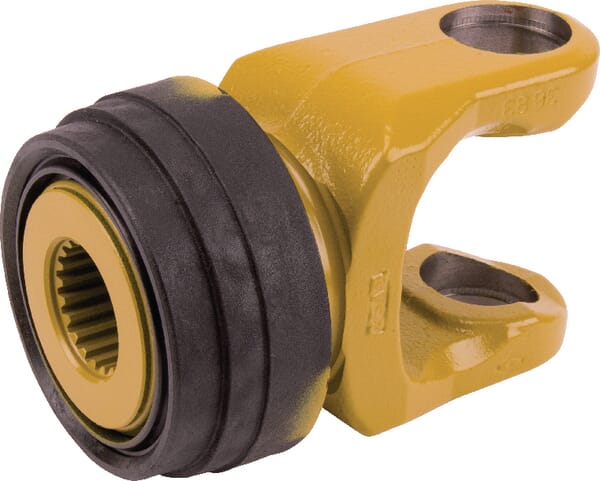

Walterscheid Yoke, Quick disconnect, 1-3/8"-21 spline, W2500/P500 368302
£261.22 excl.
£313.46 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000043123

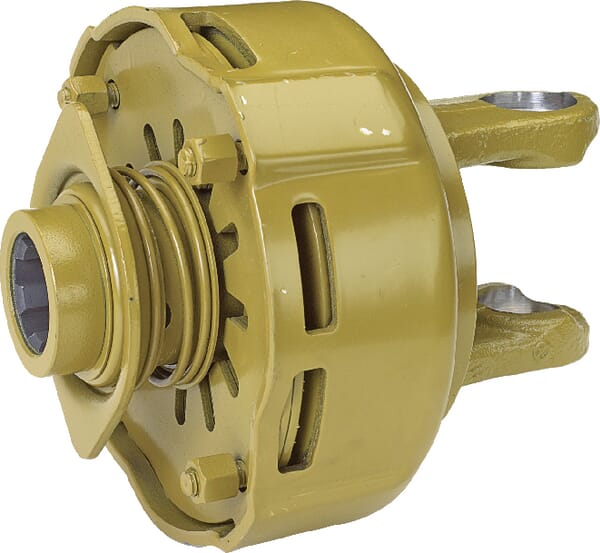

Walterscheid Friction clutch 1333919
£677.99 excl.
£813.59 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000025211

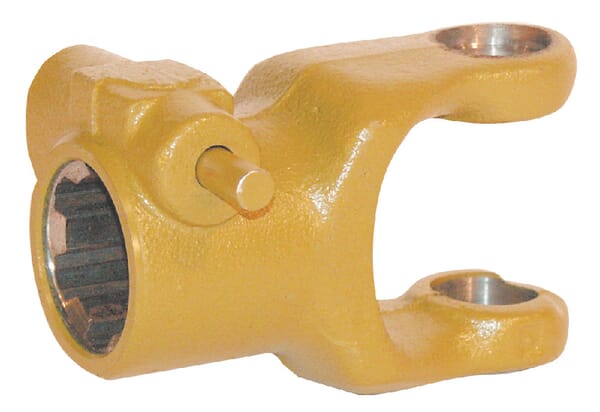

Walterscheid Yoke, quick disconnect, 1-3/8"-6 spline, W2100/W100E 101000
£70.23 excl.
£84.28 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000141762

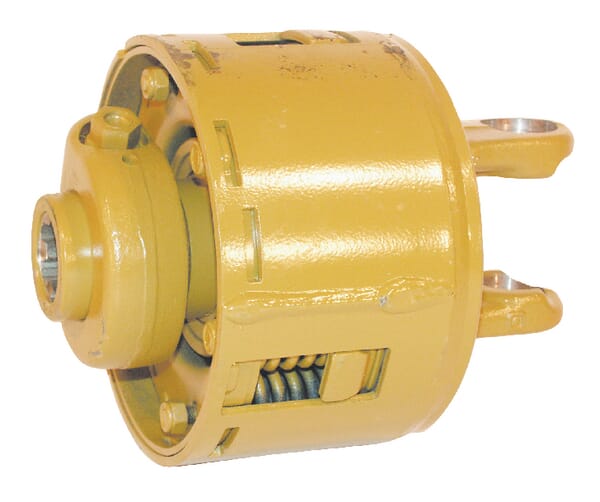

Walterscheid Friction clutch W2500 FK96/4R 150daNm 5813351150
