£1,113.60
excl. VAT
£1,336.32 incl. VAT
£1,336.32
incl. VAT
£1,113.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Longer life time than standard PTO shaft, Low maintenance costs, Faster coupling |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Consists of | PTO shaft with guard tube, Declaration of conformity, Instruction manual, Yokes not supplied |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Details | Lubrication interval: 100 to 250 hours, Profiled guard tube prevents rotation, Sealed profile tube prevents penetration of dirt, Quickly removable shielding, No safety chain required on tractor side |
| Inner tube large outside diameter | 51 mm |
| Inner tube profile | S4LGA |
| Inner tube wall thickness | 6 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max static torque | 6000 N·m |
| Original number equivalent | 1148976 |
| Outer tube large outside diameter | 61 mm |
| Outer tube profile | S5 |
| Outer tube wall thickness | 4.5 mm |
| Power 1000 rpm | 102 kW |
| Power 540 rpm | 66 kW |
| Profile tube shape | Star |
| Properties | Meet the requirements of EC 89/392 EEC, Comply with safety standard EN12965, CE marking awarded |
| Protection type | PG25 |
| Size code | P500 |

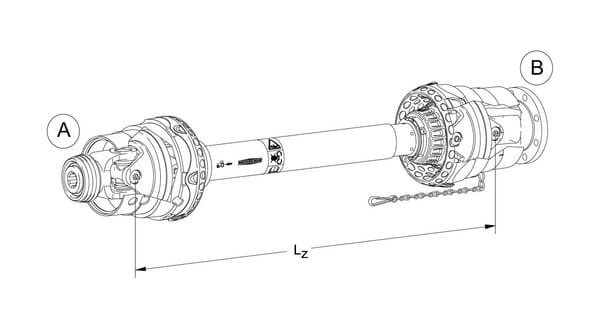

| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at a working angle of 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22000 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000144241
Walterscheid Flange hub K90/4 1.3/8 569100
£368.72 excl.
£442.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000178259

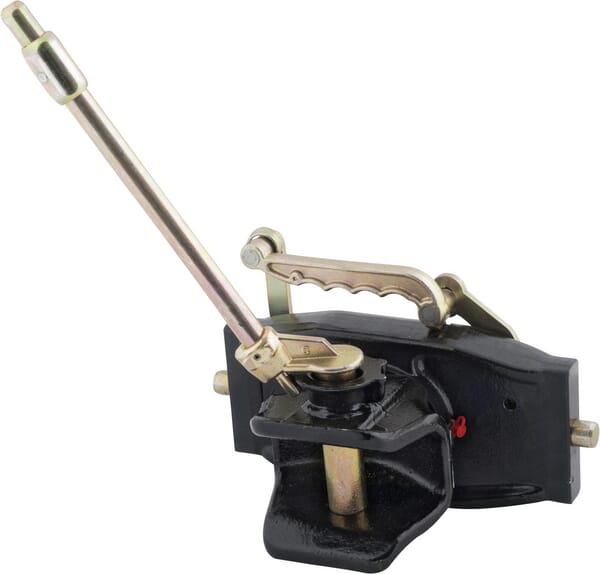

Walterscheid Trailer coupling 309mm 8003697
£899.71 excl.
£1,079.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000021432

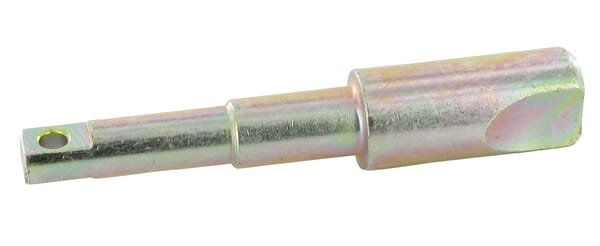

Walterscheid Pin Cat.3 099113
£27.02 excl.
£32.42 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000098452
Walterscheid Wide-angle cv joint W2480-1b 358310351310
£805.82 excl.
£966.98 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000084311

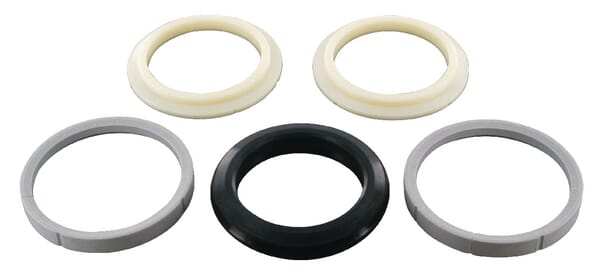

Walterscheid Seal cat.2 306068
£136.47 excl.
£163.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000067308
Walterscheid Yoke, Flange, W2300/P300/W300E 211600
£135.51 excl.
£162.61 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
Free shipping
BPA000321243

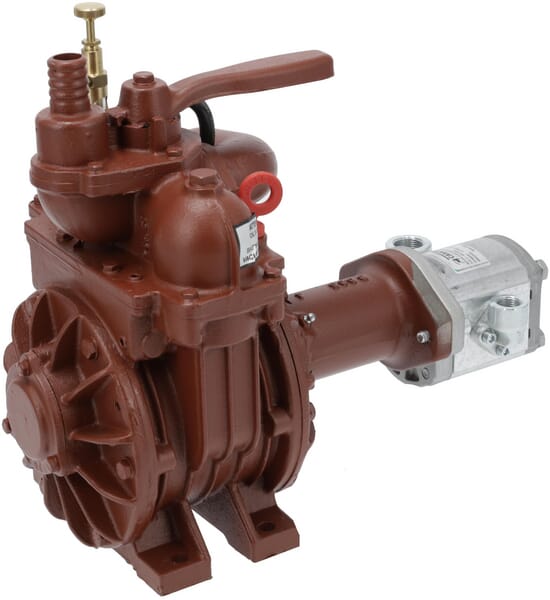

Battioni Pagani Vacuum pump hydraulic drive BP MEC1000H
