£663.69
excl. VAT
£796.43 incl. VAT
£796.43
incl. VAT
£663.69 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Harvesters, Soil cultivating machinery, Wood shredders |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer life time than standard PTO shaft, Low maintenance costs, Faster coupling |
| Consists of | PTO shaft with guard tube, Declaration of conformity, Instruction manual, Yokes not supplied |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Details | Lubrication interval: 100 to 250 hours, Profiled guard tube prevents rotation, Sealed profile tube prevents penetration of dirt, Quickly removable shielding, No safety chain required on tractor side |
| Inner tube profile | S4LH |
| Length | 810 mm |
| Max static torque | 6000 N·m |
| Original number equivalent | 1113138 |
| Outer tube profile | S5 |
| Properties | Meet the requirements of EC 89/392 EEC, Comply with safety standard EN12965, CE marking awarded |
| Protection type | PG20 |
| Size code | P500 |

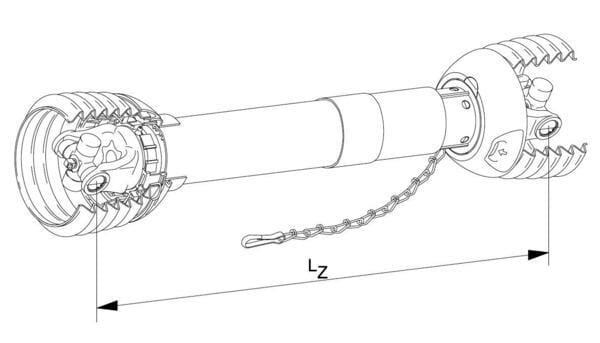

| Technical info | Follow the Walterscheid instruction manual, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at a working angle of 5° and service life 1000 hours, LZ = slid-in length in mm, from intersection to intersection |
| Unit | Each |
Logistics
| EAN | 8435194017312 |
|---|---|
| Unit of measure | EA |
| Weight | 16900 g |
| Dimensions | 900 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000092822

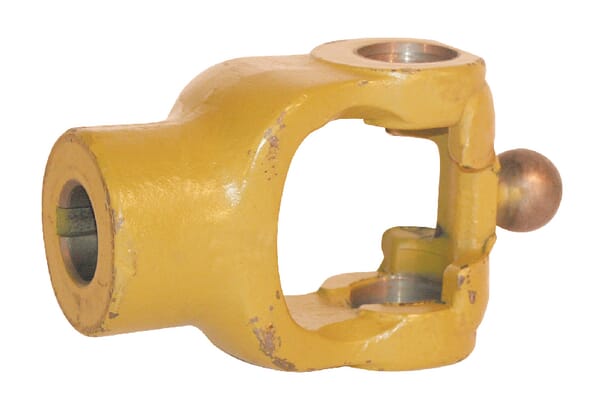

Walterscheid Yoke, Hub, 40mm, W2480 352423
£603.04 excl.
£723.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000084597
Walterscheid Fork rod for ASST-B 308968
£180.25 excl.
£216.30 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000342474

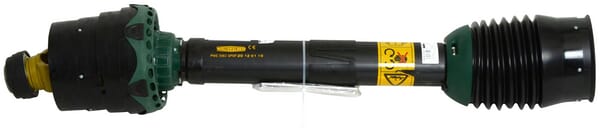

Walterscheid Wide angle PTO shaft PWE580 L:910mm PWE580910B361830
£1,947.73 excl.
£2,337.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400800

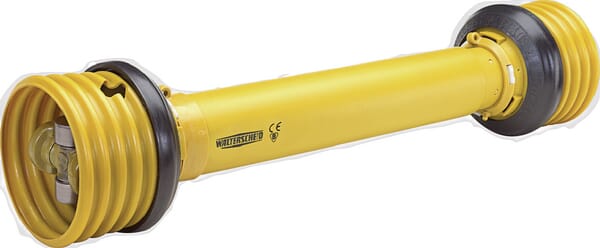

Walterscheid PTO shaft without yokes W2200 L: 860mm, W2200860OG
£285.16 excl.
£342.19 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000400130

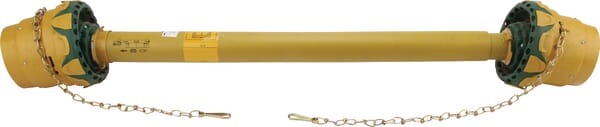

Walterscheid Wide angle PTO shaft without yokes WWZ 2280 L: 1210mm, WWZ22801210OG
