£902.84
excl. VAT
£1,083.41 incl. VAT
£1,083.41
incl. VAT
£902.84 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

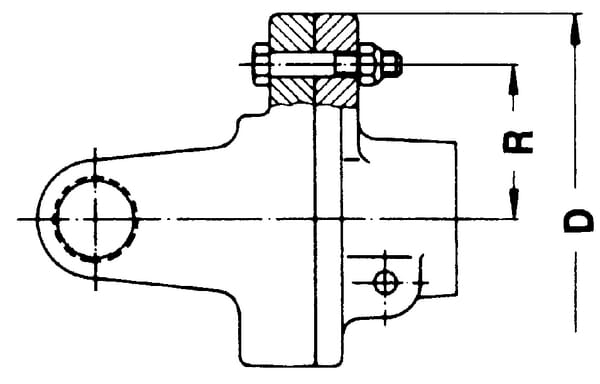

Product details
| Application range | Fertiliser pump, Shredders, Light balers |
|---|---|
| Benefits | Prevents consequent damage, Easily restorable |
| Clutch type code | K61/1 |
| Connection outside diameter tractor side inch and splines | 1.3/8-21 |
| Details | Complete interruption of the drive, Can be restored by replacing a shear bolt |
| DOutside diameter | 106 mm |
| Locking type by machine side | Push pin |
| Long description | Shear bolt clutches complete for manure pumps, shredders and light balers, among others. |
| Max dynamic torque | 910 N·m |
| Max. rotation speed | 1000 r/min |
| Original number equivalent | 1343148 |
| Product details | Protects against blockages and overload, Power transmission via shear bolt, Drive fully disconnected, Repairable by replacing a shear bolt, Independent rotation direction |
| Properties | Independent of the direction of rotation, Power transmission via shear bolt |
| Pros | Prevents against subsequent damage, Easy to repair |
| RShare bolts circle radius | 42 |
| Shaft size code | W2200 |
| Share bolts thread diameter | M8 |
| Share bolts thread length | 35 |
| Shear bolts quality | 8.8 (steel) |
| Technical info | Protects against blockages and overload |
| Unit | Each |
Logistics
| EAN | 8435194191555 |
|---|---|
| Unit of measure | EA |
| Weight | 1900 g |
| Dimensions | 137 × 68 × 87 mm |
| Dangerous goods | No |
You might also like
BPA000025963
Walterscheid Roll pin 10x65mm ISO:8752 1020614
£3.35 excl.
£4.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000068162
Walterscheid Hydraulic toplink, hook with ball cat.4HD, diameter 120 mm 205131
£2,178.19 excl.
£2,613.83 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000244898

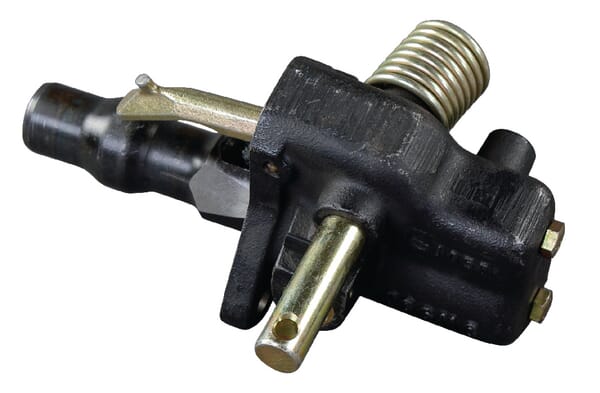

Walterscheid Coupling head complete 38mm Cramer CKE638038000
£766.19 excl.
£919.43 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000242657

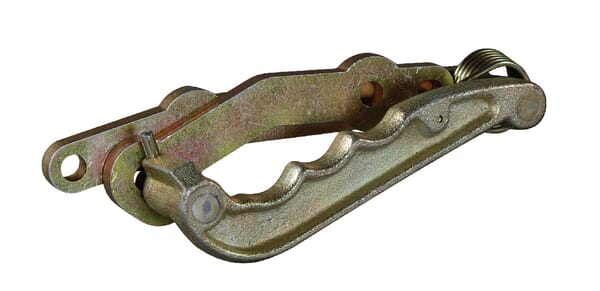

Walterscheid Adjustment set Cramer CK22931022
