£865.96
excl. VAT
£1,039.15 incl. VAT
£1,039.15
incl. VAT
£865.96 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Consists of | Semi clutch axle with shielding, Declaration of conformity, Instruction manual, Supplied without yoke and joint cross |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by machine side - longer part | 32 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by machine side - longer part | 106 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Length | 1014 mm |
| Locking type by machine side | Wide angle without UJ |
| Original number equivalent | 1113205 |
| Outer tube profile | S5 |
| Properties | Lubrication interval: 8 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | SD25 |
| Size code | WW 2580 |
| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 21800 g |
| Dimensions | 1000 × 260 × 260 mm |
| Dangerous goods | No |
You might also like
BPA000356958
Walterscheid PTO inner half guard SD25, L: 1,000mm SD251000IWWZ25
£80.42 excl.
£96.50 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000356972
Walterscheid PTO inner half guard SD25/1, L: 1,000mm SD2511000IWWZ25
£93.22 excl.
£111.86 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000027039
Walterscheid Profile 1048757
£72.29 excl.
£86.75 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000098798
Walterscheid Yoke, Clamp bolt, 1-3/8"-21 spline, W2500/P500 361006
£197.26 excl.
£236.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000342457
Walterscheid Wide angle PTO shaft PWE 480 L: 1210mm, PWE4801210S4LGAS5
£1,351.10 excl.
£1,621.32 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000053790

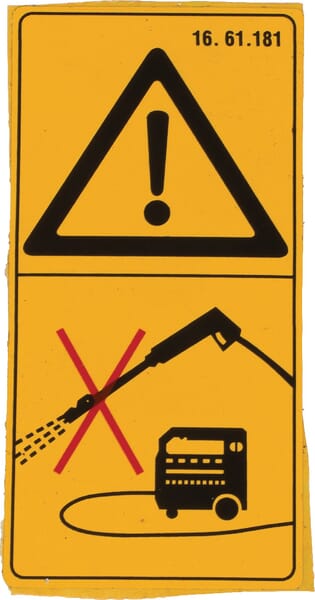

Walterscheid Warning sticker 1661181
