£1,453.65
excl. VAT
£1,744.38 incl. VAT
£1,744.38
incl. VAT
£1,453.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Broad spreader, Slurry wagon, Big baler, Silage wagon |
|---|---|
| Attachment machine side | n/a |
| Attachment tractor side | n/a |
| Benefits | Longer service life than standard pto shaft, Lower maintenance costs, Faster coupling |

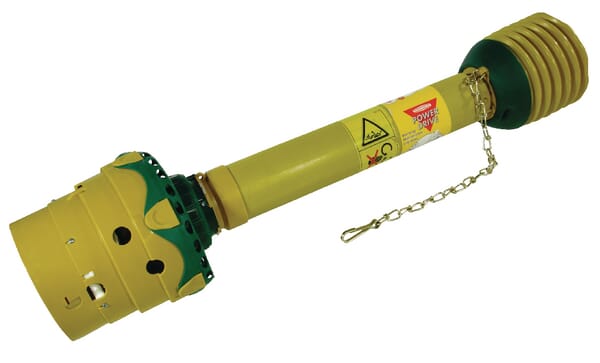

| Consists of | Wide angle pto-shaft, 1 sided, with guard tube, Declaration of conformity, Instruction manual, Delivered without yokes |
| Cross joint bush diameter by machine side | 36 mm |
| Cross joint bush diameter by tractor side | 36 mm |
| Cross joint bush diameter by tractor side - longer part | 32 mm |
| Cross joint length by machine side | 89 mm |
| Cross joint length by tractor side | 89 mm |
| Cross joint length by tractor side - longer part | 106 mm |
| Details | Robust, radial spherical plain bearing integrated in centring system, Profiled guard tube prevents turning., Sealed profile tube prevents infiltration of dirt., Quickly removable shielding, No safety chain on tractor side required |
| Inner tube profile | S4GA |
| Length | 860 mm |
| Original number equivalent | 1113261 |
| Outer tube profile | S5 |
| Properties | Lubrication interval: max. 60 hours, Fulfilling the requirements laid out in EC 89/392 EEC, Compliant with EN12965 safety standard, CE marking available |
| Protection type | PG20 |
| Size code | PWE 580 |

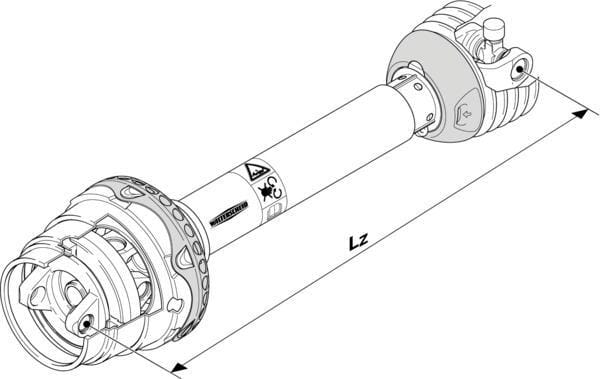

| Technical info | Working angle with continuous use maximum 25º, Working angle may only briefly be 80º, Max. dynamic capacity 540 rpm: 66 kW, 1175 Nm, Max. dynamic capacity 1000 rpm: 102 kW, 975 Nm, Values at working angle 10° and service life 1000 hours, LZ = closed length centre distance of outer intersection |
| Unit | Each |
Logistics
| EAN | 8432970215290 |
|---|---|
| Unit of measure | EA |
| Weight | 25100 g |
| Dimensions | 980 × 245 × 210 mm |
| Dangerous goods | No |
You might also like
BPA000178374
Walterscheid Nut 070-00056-00 8005393
£12.16 excl.
£14.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000363752

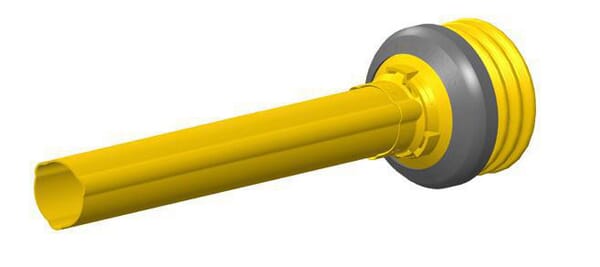

Walterscheid Guard half outer ST25 D160 ST251500AD160
£115.87 excl.
£139.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000172178
Walterscheid Profile tube coated lemon 1G diameter in: 42.6 diameter out: 48x41x2.7mm L: 1m 7516001000
£55.75 excl.
£66.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000092694
Walterscheid Yoke, Profile tube, 48mm, W2400/P400/W400E 351400
£79.16 excl.
£94.99 incl.
In stock
Expected to ship on Friday 18 September
BPA000030043

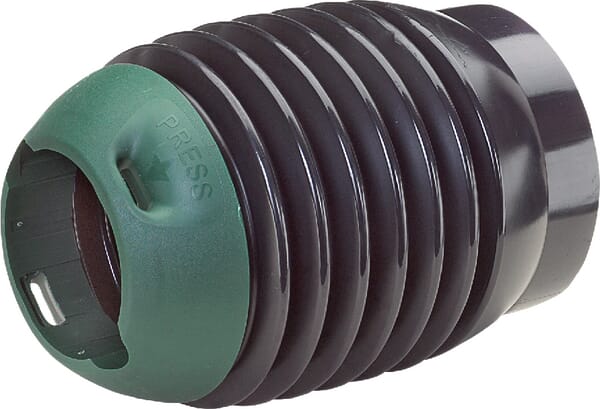

Walterscheid Guard cone 1119280
£74.03 excl.
£88.84 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000244866

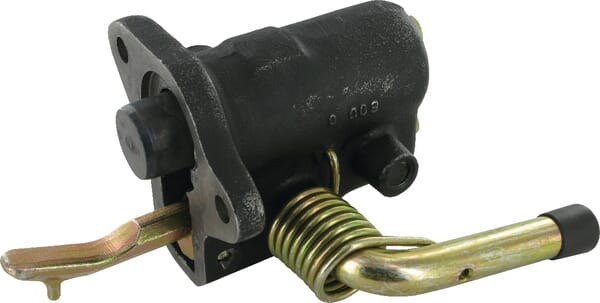

Walterscheid Coupling head 32mm CK600232000
