£109.92
excl. VAT
£131.90 incl. VAT
£131.90
incl. VAT
£109.92 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Forklifts, Telescopic arm, Trailers, Hydraulic motors, Semitrailers |
|---|---|

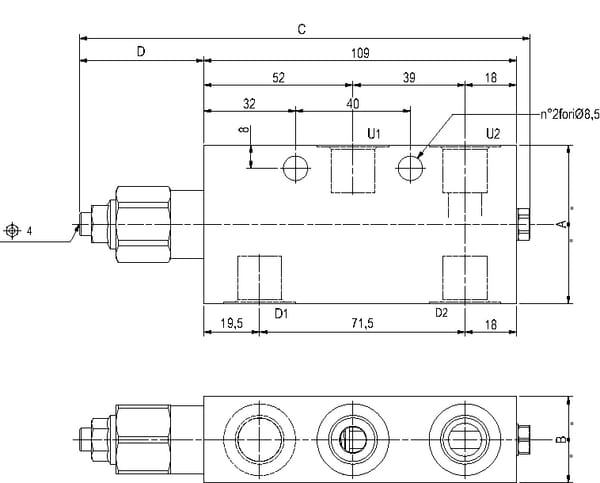

| ATotal width | 55 mm |
| Benefits | Suitable for mobile applications |
| BTotal height | 30 mm |
| Connections thread diameter | 3/8 Inch |
| Connections thread type | BSP |
| CTotal length | 156.8 mm |
| Designed for medium | Mineral oil |
| Details | Compact design |
| Material | Steel |
| Max flow rate | 60 l/min |
| Max working pressure | 350 BAR |
| Max working temperature | 90 °C |
| Min working temperature | -20 °C |
| Number of connections | 2 |
| Opening pressure | 50 BAR |
| Pilot ratio | 1:4.0 |
| Properties | Suitable for mineral oil, Load-bearing function, Negative load control |
| Surface treatment | n/a |

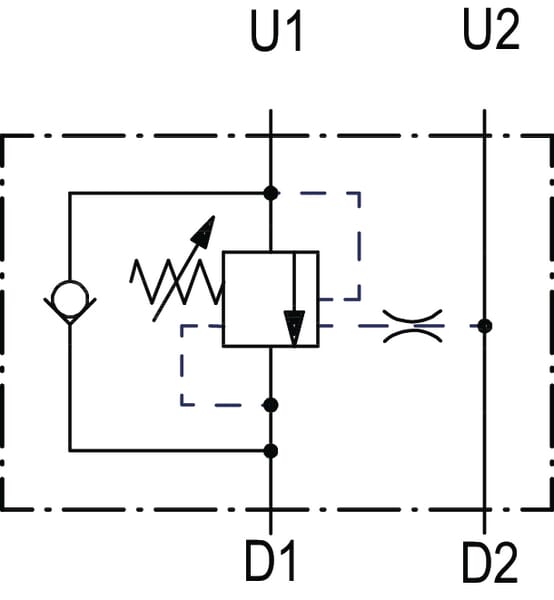

| Technical info | Suitable for use as a hose break valve, Item with N116: load-sensitive, Item with R116: balanced (limited sensitivity to return pressure), Item with V116: pressure-relieving spring chamber (insensitive to return pressure) |
| Type | Single |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1315 g |
| Dimensions | 163 × 75 × 37 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000384606

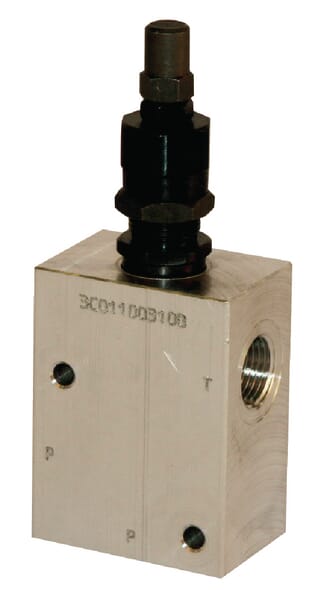

Walvoil Relief Valve A-12-P-C-3/4" BSP VMPB20001
£146.87 excl.
£176.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000396099
Walvoil Shuttle valve VRCL05001
£296.24 excl.
£355.49 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000247314
Walvoil Coil with core 12Vdc DFE10 after 2022 DFE91012C
£108.82 excl.
£130.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000357245

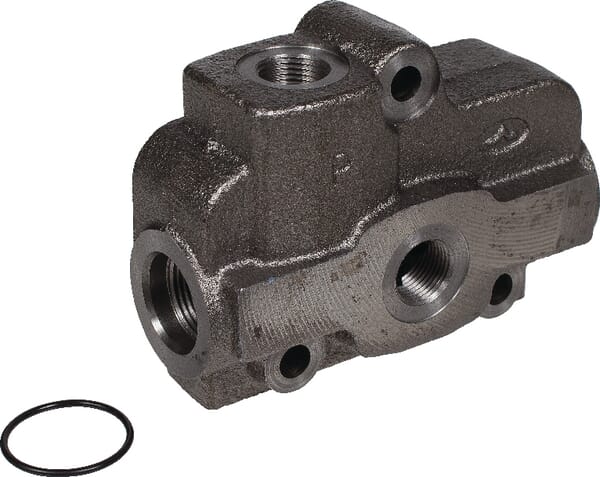

Walvoil Input module for EVP91 SD6ACDEVP
£93.23 excl.
£111.88 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000357556
Walvoil Front loader valve SDM143/2 AE SDM218513AE
£1,222.12 excl.
£1,466.54 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000384611

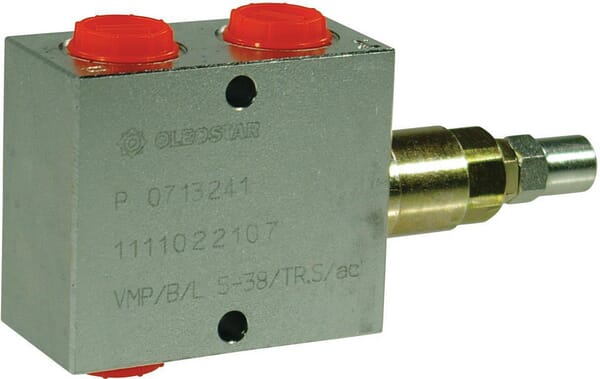

Walvoil Pressure relief valve Steel VMPBL05003ST
