£202.66
excl. VAT
£243.19 incl. VAT
£243.19
incl. VAT
£202.66 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

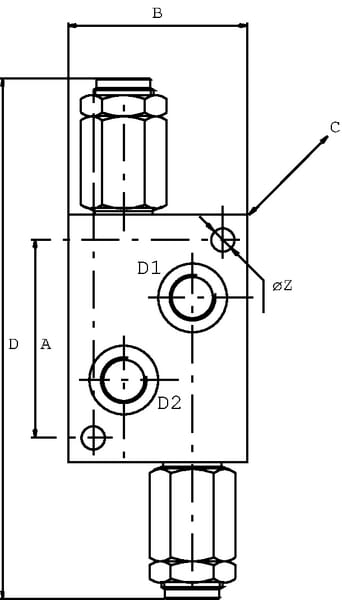

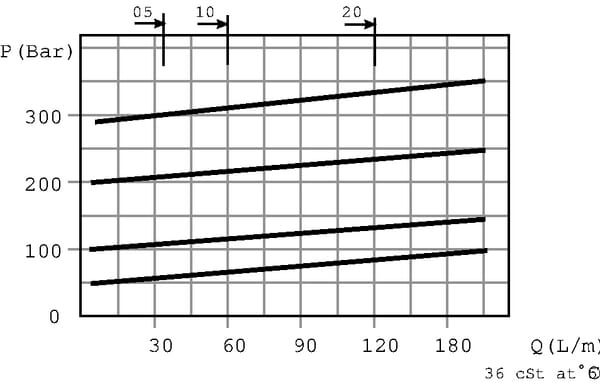

| Adjustable pressure range | 5-210 BAR |
|---|---|
| Adjustment type | Socket screw |
| BHousing length | 100 mm |
| Cartridge length | 57.7 mm |
| CHousing width | 30 mm |
| Connections distance | 100 mm |
| Connection thread diameter | 3/8 Inch |
| Connection thread type | Inch |
| Connection type | Thread |
| DTotal height | 196 mm |
| Housing height | 65 mm |
| Max. flow rate | 35 l/min |
| Max working pressure | 350 BAR |

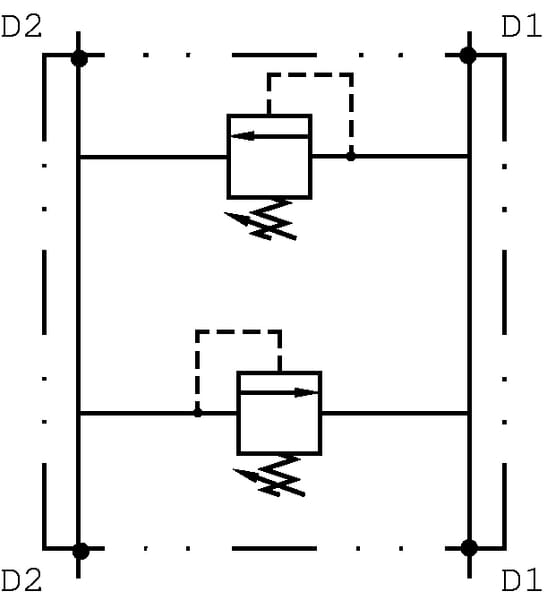

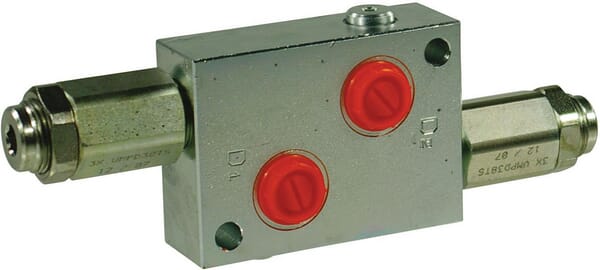

| Technical info | This double-acting pressure relief valve protect a hydro motor against occurring pressure peaks as a result of external forces which appear at an abrupt stop or the direct reversal of the direction of rotation. |
| Type | Spring-loaded differential valve |
| Unit | Each |
| ZMounting holes diameter | 8.5 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1520 g |
| Dimensions | 195 × 75 × 40 mm |
| Dangerous goods | No |
You might also like
Free shipping

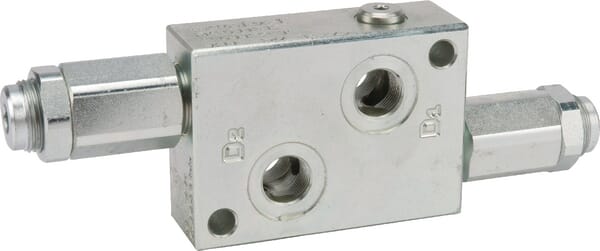

BPA000382521
Walvoil Relief valve steel A06-SA 3/8" BSP 3/8" BSP VADDL05002ST
£205.67 excl.
£246.80 incl.
In stock
Expected to ship on Friday 18 September
BPA000258469
Walvoil Coil 24V DC EC series 10 EL9BQ24
£35.99 excl.
£43.19 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000376602
Walvoil Valve VDA-FL-6-38 NG-6 VDA638
£336.32 excl.
£403.58 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000253265
Walvoil Front loader valve DLM122/2 LS set, 12 VDC DLM1222001KIT
£3,204.21 excl.
£3,845.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000382545
Walvoil Check valve VANT T 12-OMS VANT12OMS
£71.36 excl.
£85.63 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

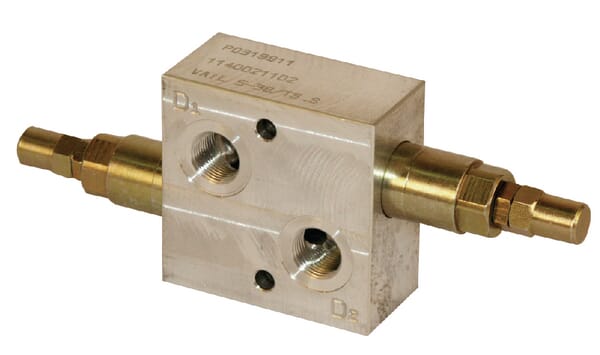

BPA000382539
